Lock-N-LiftLock-N-Lift
MODEL #800 – Lifting Tool
Material: AISI 4340 Chrome-Moly Steel Heat Treatment: Normalize, Quench & Temper Safe Working Load: 5,000kg Safety Factor: 5:1 minimum
$455.00 ex. GST
Quotes are free and come back within one business day. Everything we supply is rated, tagged and certified to AS/NZS.
About this product

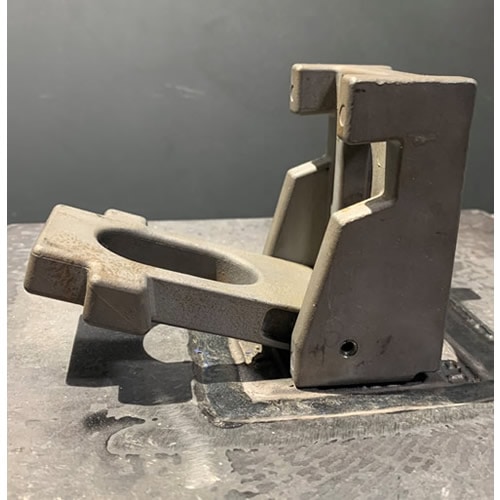

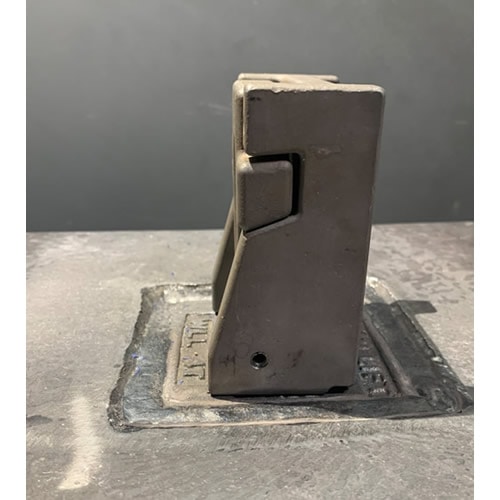

The patented Lock-N-Lift Model 800 combines the proven safety and ease of use of the Model 750 with the added convenience of lifting by either a hook or chain shackle.
Model 800 tools have been used throughout North America since 1988, eliminating the need for pry bars, installation tools or thread cleaning when moving and storing road plates.

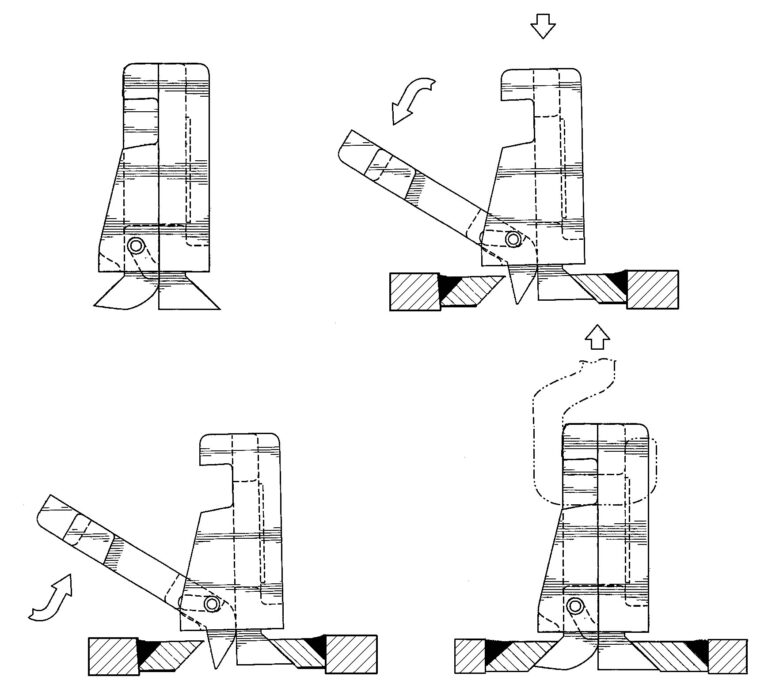

The Model 800 maximises worker safety by removing the need to place hands, feet or tools beneath a road plate, including during installation of the weld-in plate.

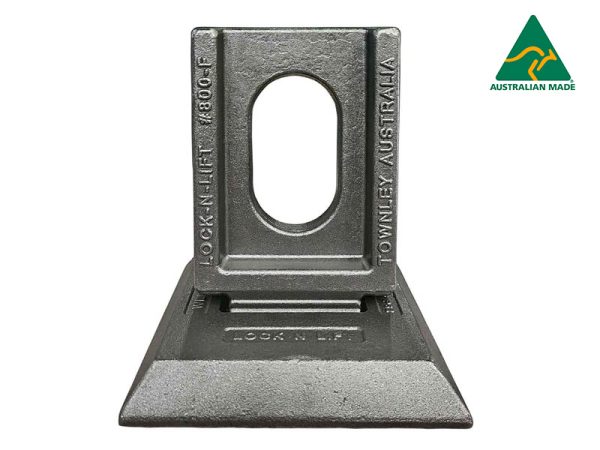

Its elongated attachment hole allows road plates to be lifted using either a hook or chain shackle.
The Model 800 is manufactured in the USA from high-quality, aircraft-grade AISI 4340 steel. Each tool is heat-treated to provide a safe working load of 8,000 pounds, with a 5:1 safety factor.
Product Code | WLL (t) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
Lock-N-Lift 500-F | 5t | 115 | 115 | 16 | 1.1 |
Lock-N-Lift 800-F | 5t | 60 | 85 | 125 | 2.1 |
