#500B – Weld-In Plate
Dimensions: 4-1/2″L x 4-1/2″ W x 5/8″ Thick Weight: 2.2 Pounds Material: WCB Steel Per ASTM-A216 Heat Treatment: Normalize Safe Working Load: 8,000 pounds Safety Factor: 5:1 minimum
$95.00 ex. GST
Quotes are free and come back within one business day. Everything we supply is rated, tagged and certified to AS/NZS.
About this product
The Lock-N-Lift Model 500B weld-in plate contains the female connector for all Lock-N-Lift tools. The plate easily welds into items that are being lifted and/or lowered. When properly installed, the weld-in plate sits flush to the surface of the item it is welded into, eliminating any trip hazard. The plate contains no threads, and requires no routine maintenance.

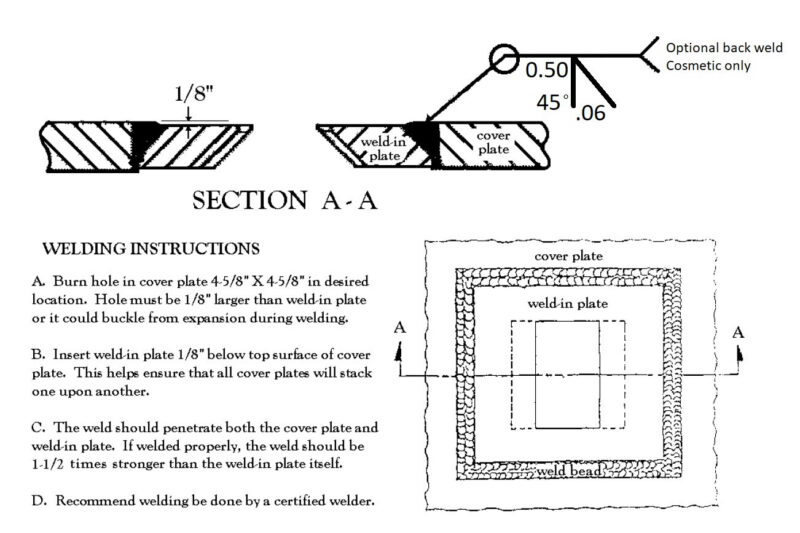

The plate is made of WCB steel, designed for easy welding into road plates made of Grade A36, A50 or A992 steel. It takes approximately 20 minutes to install the weld-in plate in the center of a 1” thick road plate.
Product Code | WLL (t) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
Lock-N-Lift 500-F | 5t | 115 | 115 | 16 | 1.1 |
Lock-N-Lift 800-F | 5t | 60 | 85 | 125 | 2.1 |
