1 / 2Australian Standard Gold Tip Thimble
From $2.00 ex. GST
Narrow it down
Pick your sizes
| Option | SKU | Price | Quote |
|---|---|---|---|
| 6MM Option$2.00 | TE6 | $2.00 | |
| 8MM Option$2.50 | TE8 | $2.50 | |
| 10MM$3.00 | TE10 | $3.00 | |
| 11MM Option$4.00 | TE11 | $4.00 | |
| 12MM$5.00 | TE12 | $5.00 | |
| 14mm Option$6.00 | TE14 | $6.00 | |
| 16MM Option$7.00 | TE16 | $7.00 | |
| 18MMPrice on request | TE18 | — | |
| 19MM OptionPrice on request | TE19 | — | |
| 20MM Option$11.00 | TE20 | $11.00 | |
| 22MMPrice on request | TE22 | — | |
| 24MMPrice on request | TE24 | — | |
| 26MM OptionPrice on request | TE26 | — | |
| 28MMPrice on request | TE28 | — | |
| 32MMPrice on request | TE32 | — | |
| 36MM$50.00 | TE36 | $50.00 | |
| 40MMPrice on request | TE40 | — | |
| 44MM OptionPrice on request | TE44 | — | |
| 48MMPrice on request | TE48 | — | |
| 52MMPrice on request | TE52 | — |
Quotes are free and come back within one business day. Everything we supply is rated, tagged and certified to AS/NZS.
About this product

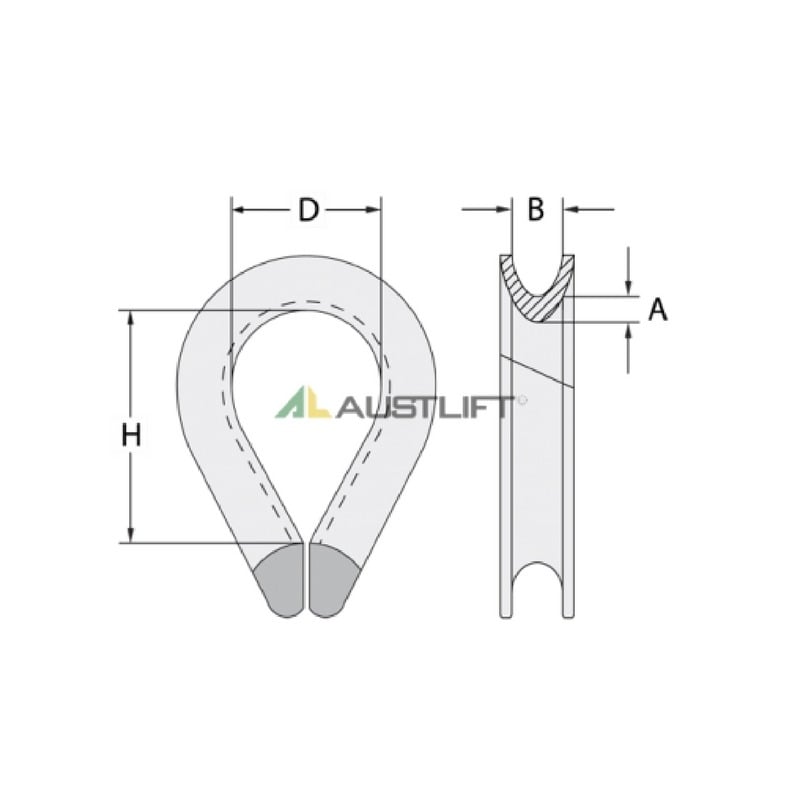

Size (mm) | Weight (kg) | A (mm) | B (mm) | H (mm) | D (mm) |
6 | 0.04 | 4 | 7 | 25 | 16 |
8 | 0.052 | 5 | 7.9 | 33 | 22 |
10 | 0.08 | 5 | 10.3 | 38 | 25 |
11 | 0.09 | 6 | 12.7 | 41 | 29 |
12 | 0.13 | 6 | 14.3 | 44 | 32 |
14 | 0.15 | 7 | 15 | 46 | 38 |
16 | 0.26 | 8 | 15.9 | 59 | 41 |
18 | 0.35 | 8 | 18 | 65 | 46 |
19 | 0.4 | 9 | 20.6 | 73 | 51 |
20 | 0.5 | 10 | 21.6 | 75 | 52 |
22 | 0.62 | 10 | 22.2 | 83 | 57 |
24 | 0.9 | 11 | 25.4 | 92 | 64 |
26 | 1 | 11 | 27 | 111 | 72 |
28 | 1.1 | 12 | 28.6 | 111 | 76 |
32 | 1.3 | 14 | 33.4 | 133 | 95 |
36 | 2.2 | 16 | 38 | 152 | 105 |
40 | 3.2 | 18 | 43 | 165 | 114 |
44 | 5.6 | 20 | 47 | 178 | 127 |
48 | 8.2 | 22 | 51 | 190 | 134 |
