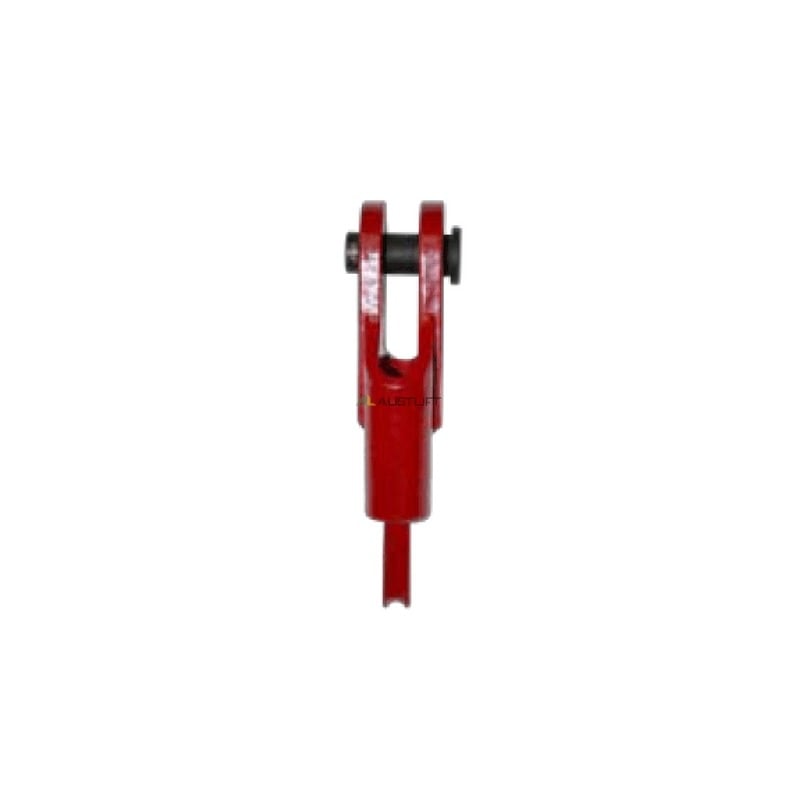

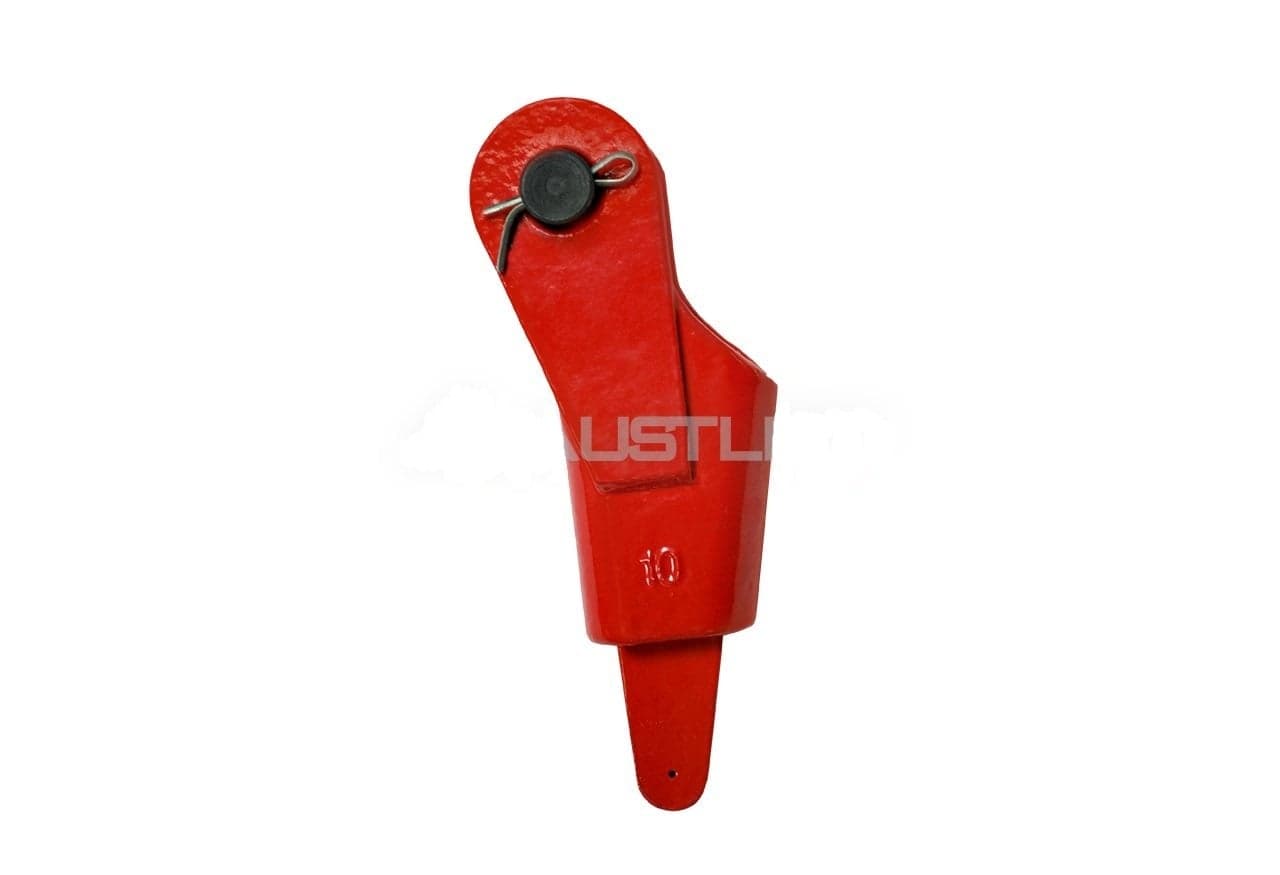

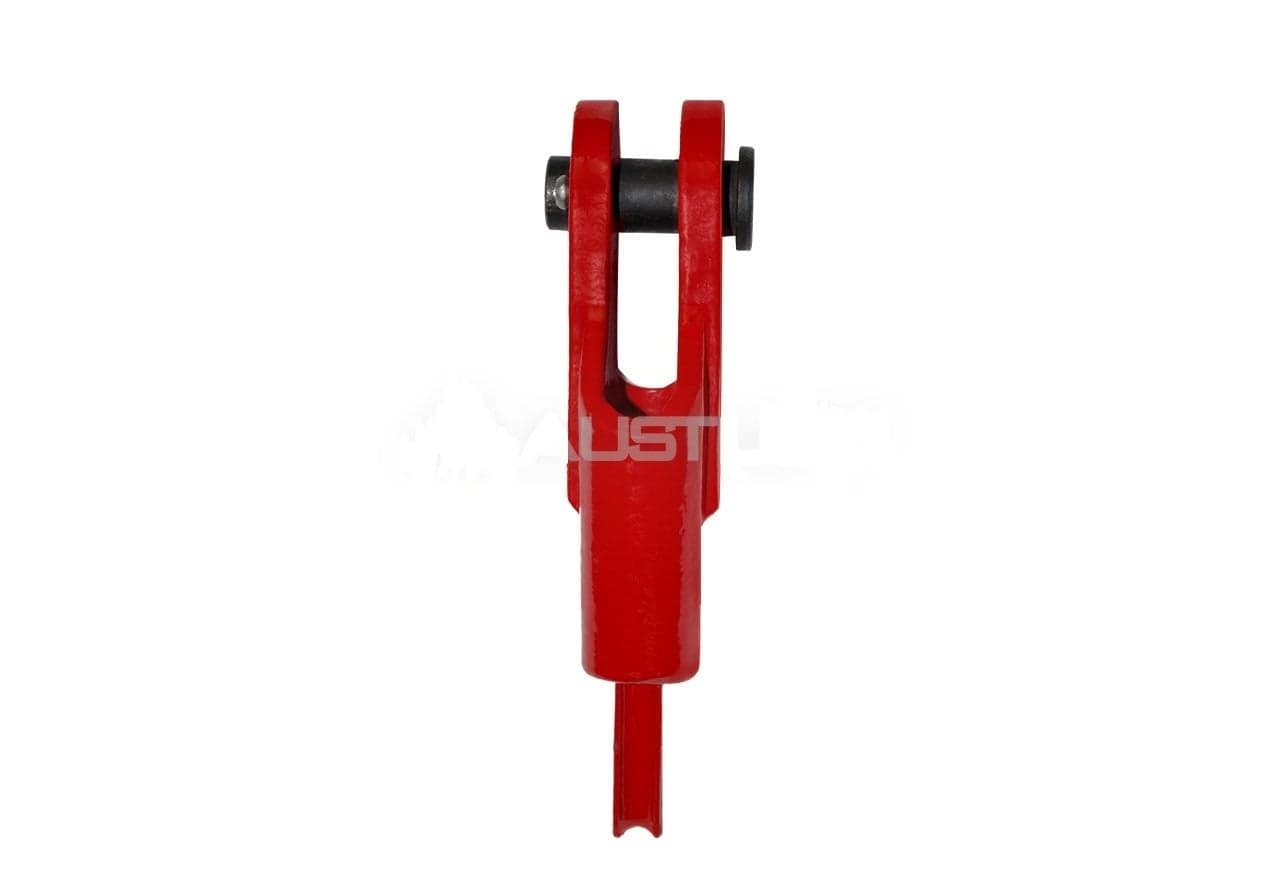

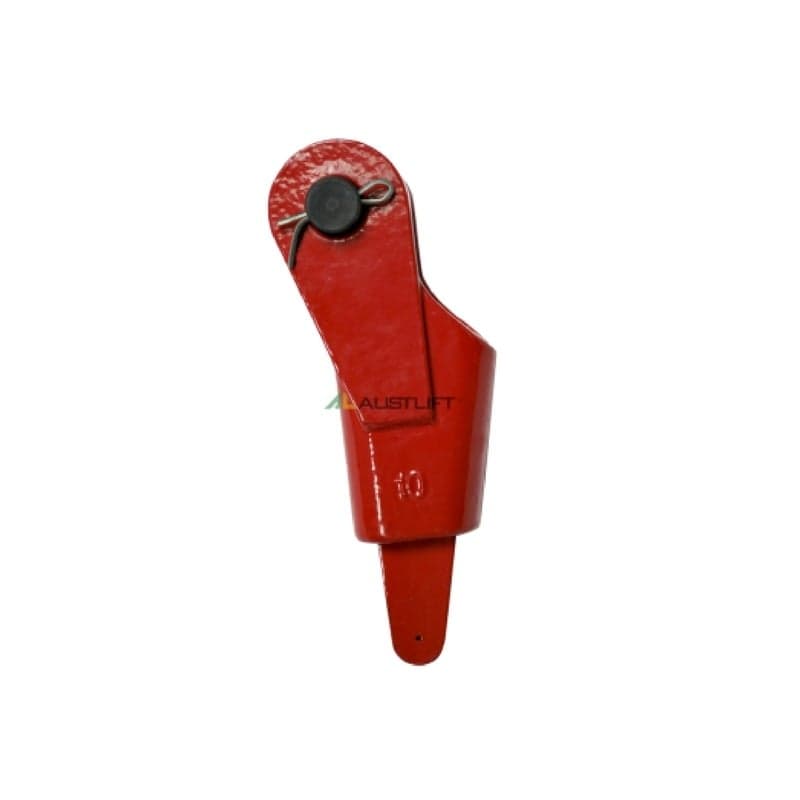

1 / 6Wedge Socket
A wedged socket is fitted to a wire rope. The nominal diameter of the wire rope shall be equal to the nominal size of the wedge-type socket and the loaded end of the rope shall enter the socket body so that when loaded it will not bend where it leaves the socket body. Suitable for rope termination such as crane rope applications.
From $79.20 ex. GST
Narrow it down
Pick your sizes
| Option | SKU | Price | Quote |
|---|---|---|---|
| 10MM$79.20 | WS10 | $79.20 | |
| 12MM$133.10 | WS12 | $133.10 | |
| 13-14MM$193.60 | WS13-14 | $193.60 | |
| 16MM$256.30 | WS16 | $256.30 | |
| 18MM$327.80 | WS18 | $327.80 | |
| 19-20MM$381.70 | WS19-20 | $381.70 | |
| 22MM$405.90 | WS22 | $405.90 | |
| 24MM$611.60 | WS24 | $611.60 |
Quotes are free and come back within one business day. Everything we supply is rated, tagged and certified to AS/NZS.
About this product

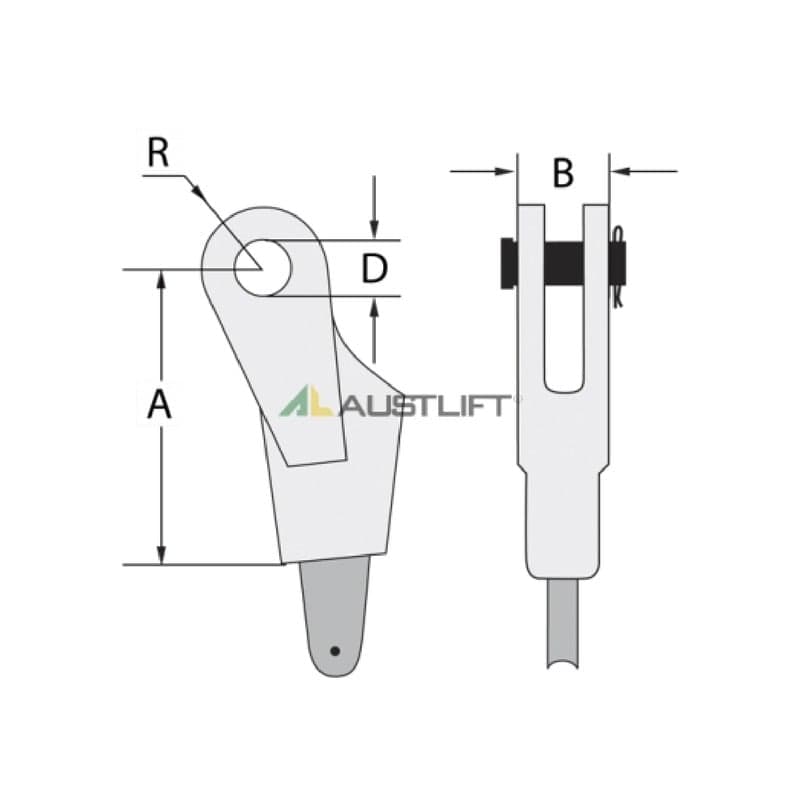

Size (mm) | WLL (T) | Weight (kg) | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) |
10 | 1.5 | 1 | 120 | 16.5 | 37.7 | 20 | 25 |
12 | 2 | 1.7 | 155 | 21.3 | 66 | 25 | 30 |
14 | 2.5 | 2.34 | 185 | 23.5 | 80 | 30 | 35 |
16 | 3 | 3.27 | 195 | 28.2 | 80 | 34 | 42 |
18 | 3.5 | 4 | 195 | 28 | 81 | 36 | 44 |
20 | 5.1 | 5.45 | 220 | 31.9 | 82 | 38 | 50 |
22 | 5.6 | 6.37 | 240 | 31.9 | 100 | 40 | 52 |
24 | 6.6 | 8.32 | 260 | 34.3 | 100 | 50 | 60 |
28 | 9.5 | 13.94 | 305 | 40.2 | 100 | 55 | 70 |
32 | 12 | 17.94 | 360 | 43.9 | 120 | 65 | 77 |
