Pro-3G Davit

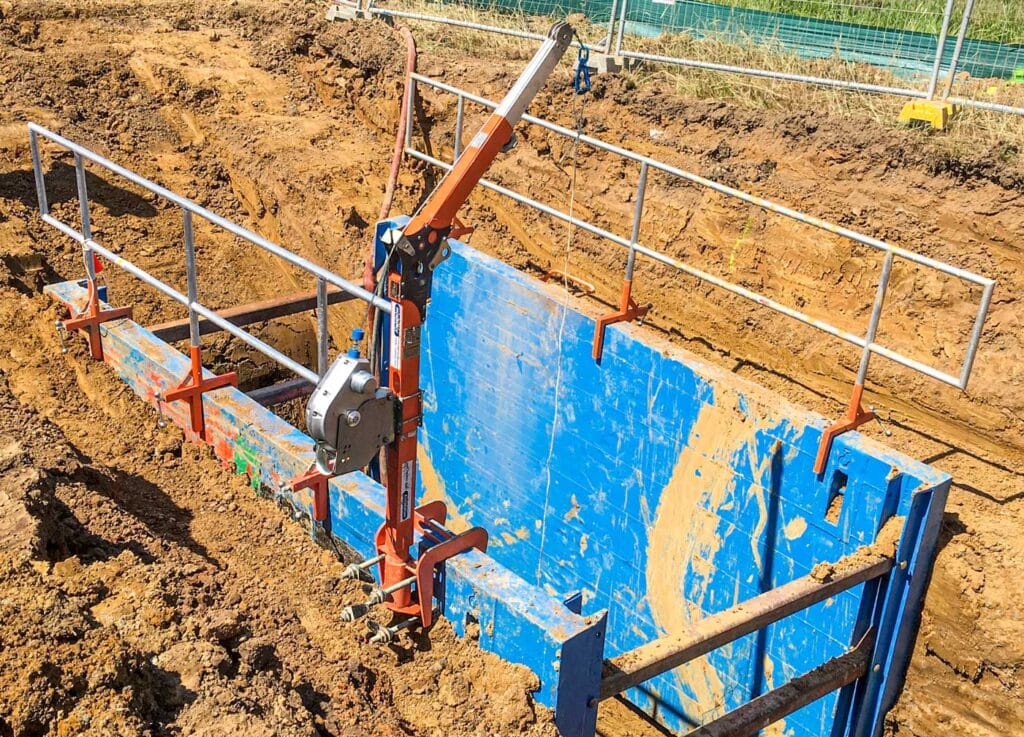

The Pro-3G Davit is a lightweight aluminium unit that is easy to set up by just one person. With a built in fall and davit overload indicator, it is rated to 18kN. The system is a modular design allowing the user to create a davit setup for their individual requirements. With a range of brackets, winches and bases available, the Pro-3G Series is an ideal davit for confined space entry with a 1.9 – 2.2MTR & 2.5 – 2.8MTR davit allowing offset of 0.5 to 0.7MTR.

PRODUCT FEATURES

• Lightweight material graded 6061-T6 Aluminium
• Powder-coated safety orange to increase visibility around a workplace

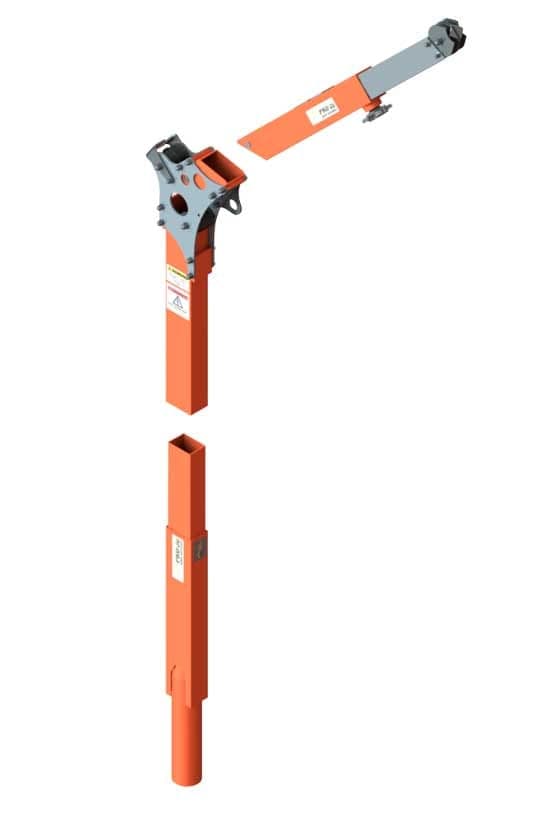

• Modular in construction with no one component heavier than 10KG
• Easy to store and can be transported by 1-person
• Built in fall and davit overload indicator
• Multi-offset mast with a variable reach from 0.5MTR to 0.7MTR
• No special tools required for assembly or disassembly
• Can be set-up for use with both man-rated and material-rated applications to a max WLL of 140KG – (material rating only)
• Available with optional mast extender to increase overall height of offset anchor point by additional 600mm
• Suits both fixed and portable davit bases with a mast rotation of 360°
• Rated secondary anchor point on vertical mast for connection by the winch operator or stand-by person

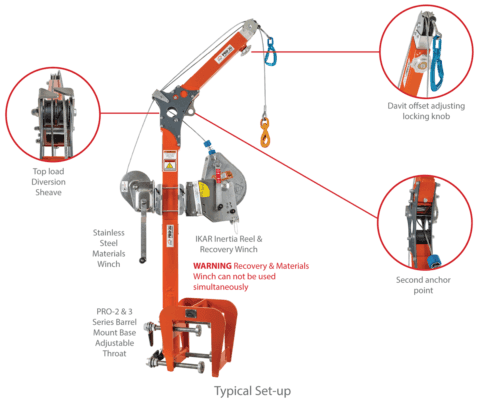

• Quick release winch interface brackets to suit all BTS winches and other reputable winch brands in the market
• Complies with product design, manufacturing and testing requirements of AS/NZS1891.4 & AS/NZS 5532-2013
