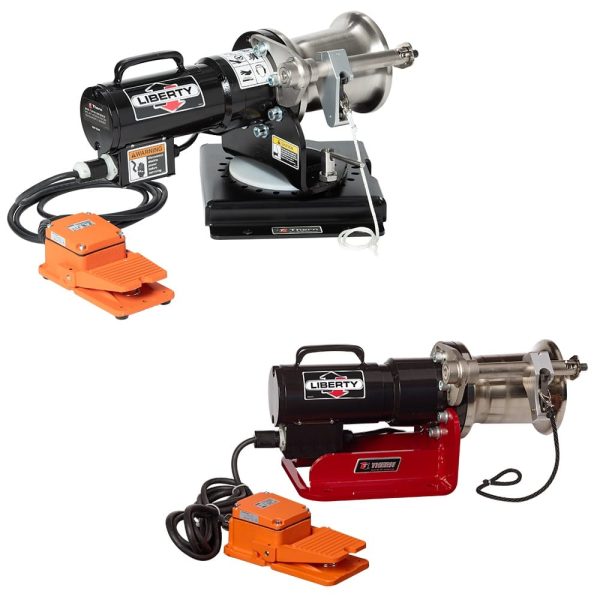

Portable Capstan Winch with Swivel Base

*CONTACT US FOR PRICING – (07) 3889 7774*

The Thern Liberty Series capstan winch with integral swivel base delivers portable strength for lifting, pulling, and tensioning at almost any angle. More importantly, quiet operation enhances team communication for increased productivity. Among other uses, it’s perfect for elevator shaft and cell tower construction projects. The powder coat finish and corrosion resistant components ensure dependable operation for many years.

FEATURES:

  • Up to 900KG capacity
  • Quiet operation
  • Extended duty cycle
  • Extremely portable
  • Enhanced safety features
  • Increased productivity
  • Maintenance free
  • Industry leading warranty
Category:
Product Description

PREMIUM MOTOR WITH HANDLE
Premium motor offers quiet operation (80dBA)* enhancing clear communication between operations. UL – Recognized motor.
* Thern’s 3CP1S-AFS winch has a maximum noise level of 80 dBA, averaging 10 dBA less than the competition when measured at a distance of approximately one meter (three feet) under similar conditions.

FOOT SWITCH CONTROL
Foot switch controlled operation enhances productivity and safety. IP65, NEMA 4 rated sealed foot switch allows outdoor use.

INTEGRAL ROPE LOCK
Rope lock prevents unintentional drops to enhance safety. Adjustable rope lock accommodates various line exit angles and operator heights.

DURABLE SWIVEL FRAME WITH INTEGRAL LOCK
Adjustable rotation in 15° increments to align loads and lock securely with switch stop.
Lightweight, engineered design and steel construction enhances portability. Powder coated steel finish resists wear and promotes durability.

INTEGRAL ROPE KEEP
Spring loaded rope keep helps prevent accidental removal of hand line from drum to enhance safety.

ENGINEERED DRUM DESIGN
Keeps load line from moving during operation, enhancing productivity. Nickel plated steel construction for optimum performance and durability.
