Description

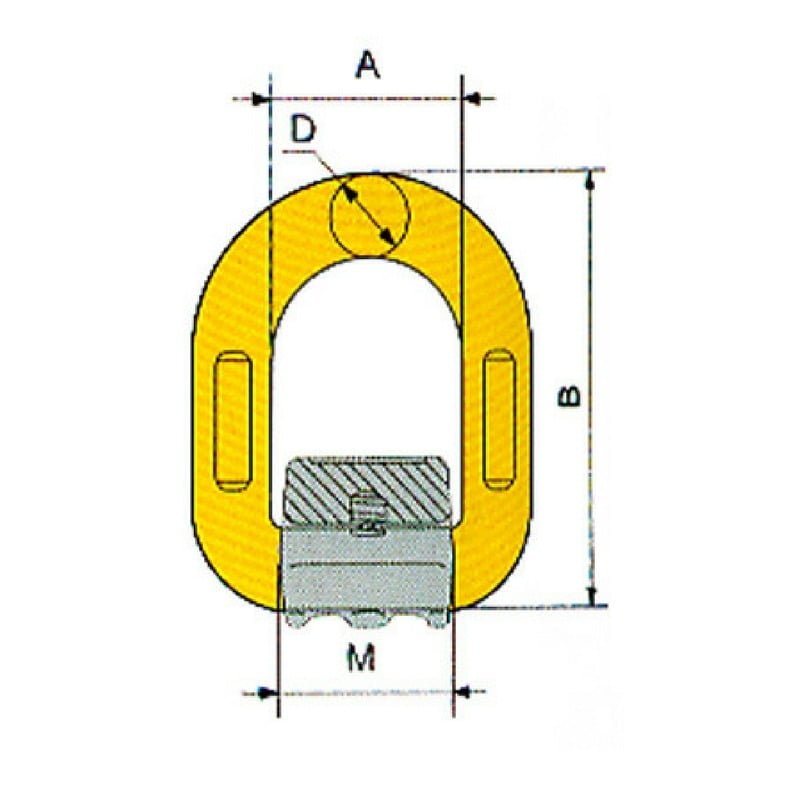

Size | WLL Ton | A mm | B mm | M mm | D mm | L mm | Weight kg |
1 ton | 1 | 55 | 55 | 50 | 14 | 95.7 | 0.55 |
3 ton | 3 | 50 | 64 | 58 | 17 | 99 | 0.9 |
5 ton | 5 | 74 | 75 | 64 | 22 | 137 | 1.8 |
8 ton | 8 | 68 | 70 | 66.5 | 26.5 | 144 | 2.5 |

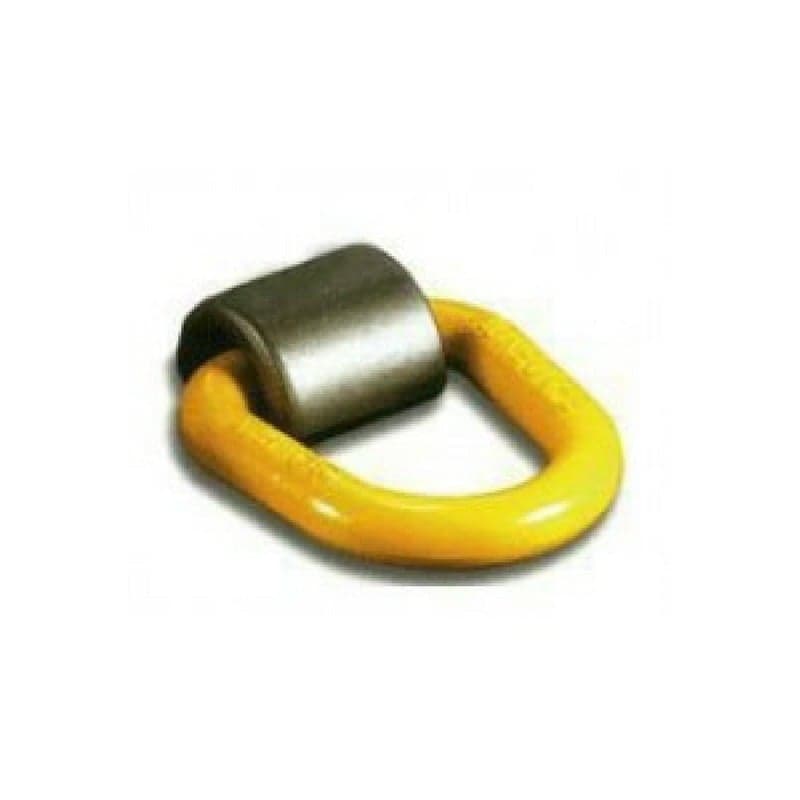

G80 Weld On Lifting Point
$25.00 – $255.00 ex. GST
Weld on Lifting Points can be welded on any carbon steel surface as a lifting point, or to be used as a fixed anchor point for spreader beam attachment. Can also be used as an anchor point for load restraint applications.

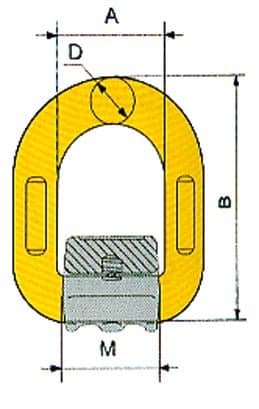

Size | WLL Ton | A mm | B mm | M mm | D mm | L mm | Weight kg |
1 ton | 1 | 55 | 55 | 50 | 14 | 95.7 | 0.55 |
3 ton | 3 | 50 | 64 | 58 | 17 | 99 | 0.9 |
5 ton | 5 | 74 | 75 | 64 | 22 | 137 | 1.8 |
8 ton | 8 | 68 | 70 | 66.5 | 26.5 | 144 | 2.5 |
