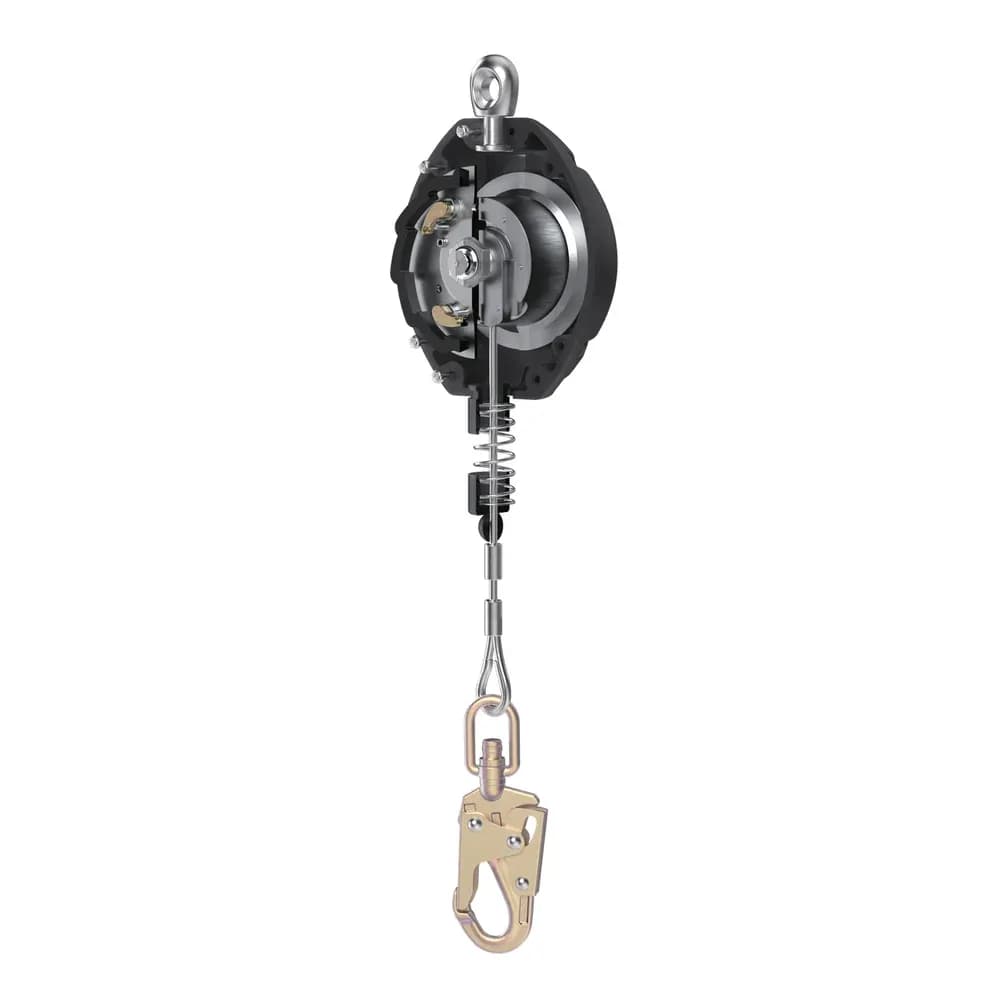

Atomic Proton Self-Retracting Lifeline
5.6 mm galvanised cable SRL in 6, 10, 15 and 20 m lengths. Heavy-duty thermoplastic housing with an internal shock absorber, built-in reserve line, ergonomic carry handle and triple-acting carabiners top and bottom. For overhead use only. Rated to 140 kg; EN360:2023 and AS/NZS 1891.3:2020.
Narrow it down
Pick your sizes
| Length | SKU | Quote |
|---|---|---|
| 6 m | SRDP06CTCT | |
| 10 m | SRDP10CTCT | |
| 15 m | SRDP15CTCT | |
| 20 m | SRDP20CTCT |
Quotes are free and come back within one business day. Everything we supply is rated, tagged and certified to AS/NZS.
About this product
Key features
- Heavy-duty thermoplastic housing
- Top and bottom swivels
- Ergonomic carry handle
- Spring-loaded bumper rubber handle
- Side payout
- Individually serialised
- Internal shock-absorbing system
- Built-in reserve line
- Available in 6 m, 10 m, 15 m and 20 m
- Triple-acting carabiners top and bottom
- Up to 5 years service life
Sizes and dimensions
Product no. | Length | Weight | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|---|
SRDP06CTCT | 6 m | 3.5 kg | 610 | 226 | 86 |
SRDP10CTCT | 10 m | 4.4 kg | 610 | 226 | 86 |
SRDP15CTCT | 15 m | 6.8 kg | 671 | 259 | 86 |
SRDP20CTCT | 20 m | 9.1 kg | 701 | 292 | 97 |
Dimensions A, B and C are as drawn on the spec sheet under Downloads.
Specifications
- Capacity
- 140 kg
- Length
- 6 m, 10 m, 15 m, 20 m
- Max arresting force
- 6 kN
- Lifeline
- 5.6 mm galvanised cable
- Use
- Overhead anchorage only
- Service life
- Up to 5 years
- Standards
- EN360:2023, AS/NZS 1891.3:2020
