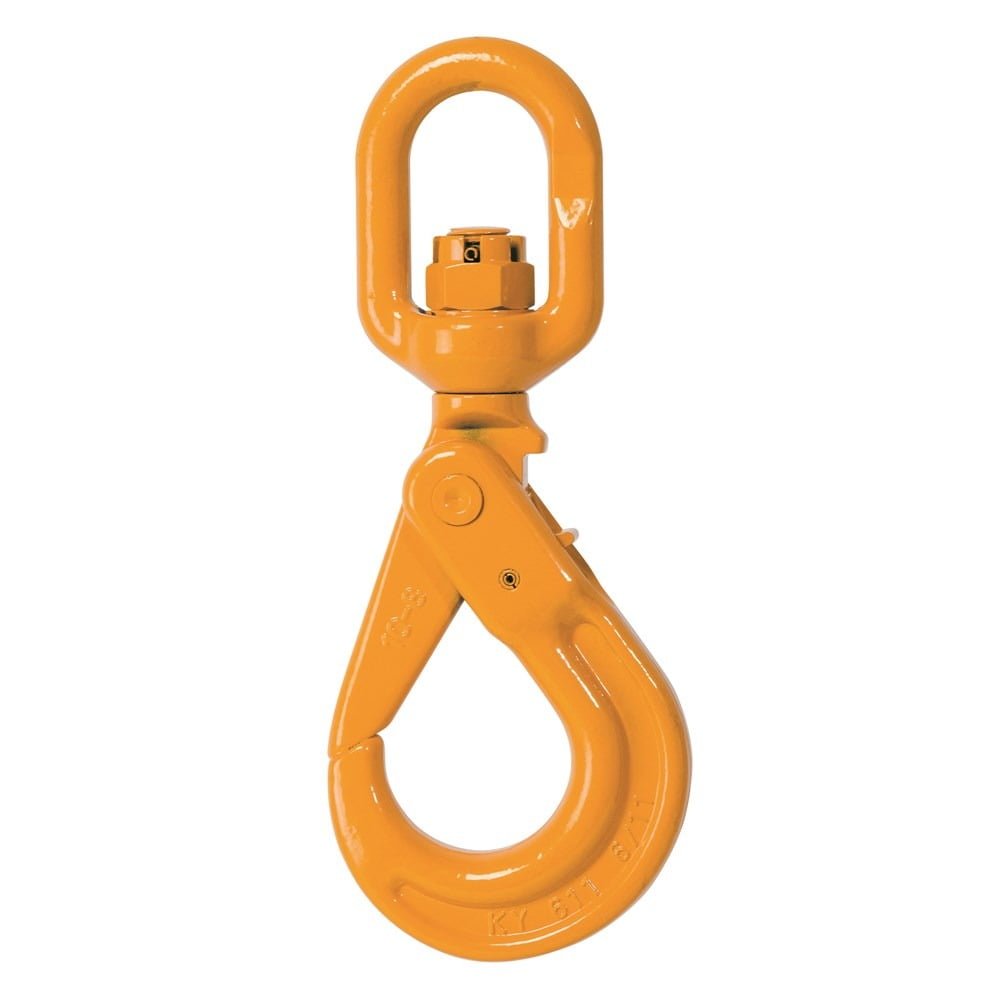

Swivel Self-Locking Hook G80

Swivel Self-Locking Hooks G80

$88.00 – $495.50 ex. GST

CONTACT OUR OFFICE FOR DIFFERENT ASSEMBLY OPTIONS TO SUIT YOUR NEEDS

Clear
SKU: BKL & BKLK Category:

Description

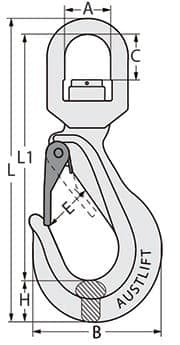

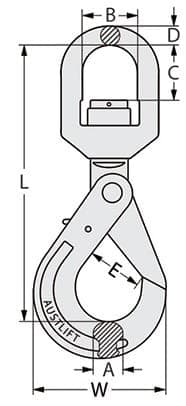

Size WLL Ton B mm C mm D mm L mm T mm E mm
6mm 1.12 32.5 22 11.25 170 34 29
8mm 2 35.5 26 12.5 210 46 34
10mm 3.2 42 34 15 247 56 44
13mm 5.3 50 38.5 16 302 69 52
16mm 8 61 55 21.5 383 86 60
20mm 12.5 72 61 26 418 100 83
22mm 15 95 95 33 527 98 88



Swivel Self-Locking Hooks G80

Additional information

Weight 0.71 kg
Option

, ,
