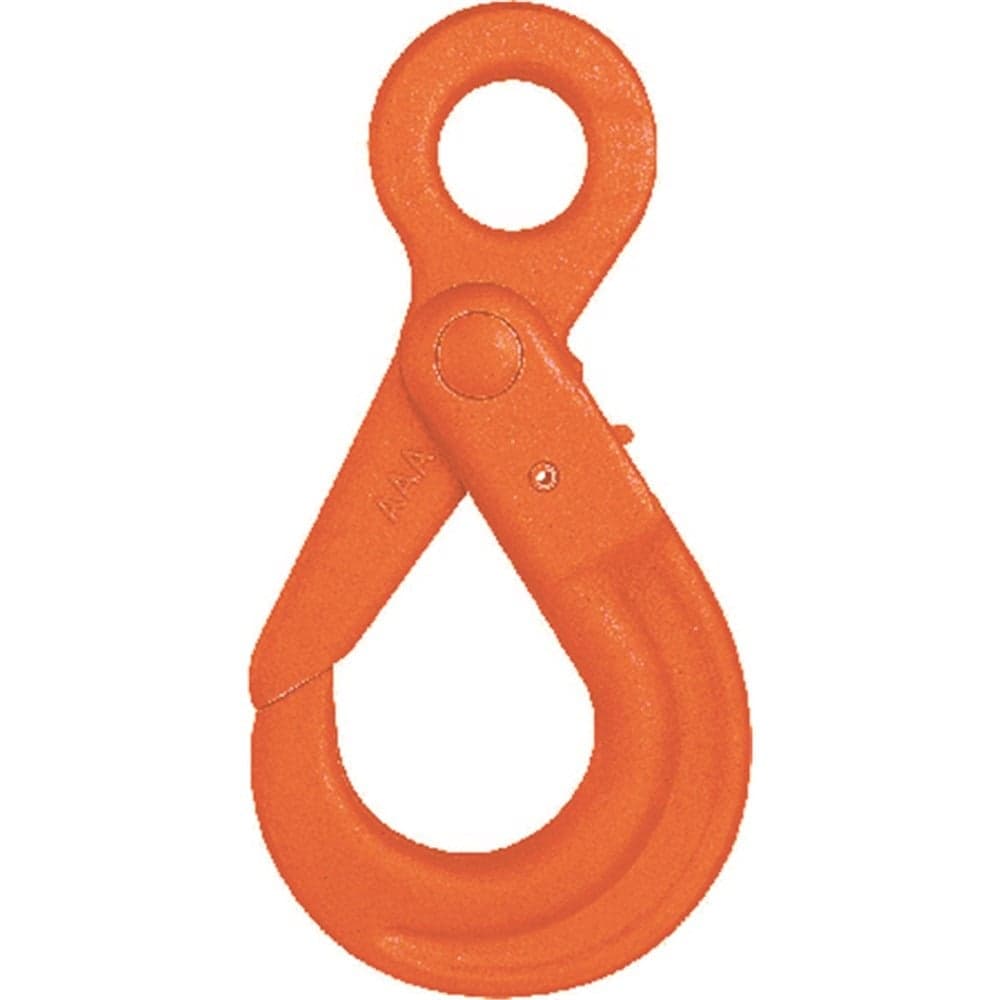

Self-Locking Hook G80 – Eye

$55.00$264.00 ex. GST

*CONTACT OUR OFFICE FOR PRICING ON 22MM, 26MM & 32MM*

Clear
SKU: OBK Category:

Description

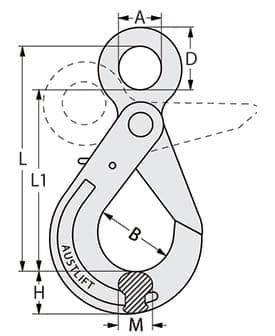

Size WLL (4:1) Ton ø1 mm R mm D mm ø2 mm H mm E mm
6mm 1.12 22 110.5 10 34 19.5 28
8mm 2 25 136 12 46 24 34
10mm 3.2 32 171 15 56 28.5 44
13mm 5.3 40.5 208.5 19.5 69 40 52
16mm 8 56 257.5 22 86 50.5 60
20mm 12.5 64.5 275 27 100 55 81
22mm 15 70 320 30 98 67 82
26mm 21.2 80 363 34 110 75 110
32mm 31.5 105 472 45 166 97 168



Self-Locking Hook G80 – Eye

Additional information

Weight 0.5 kg
Grade

100, 80
