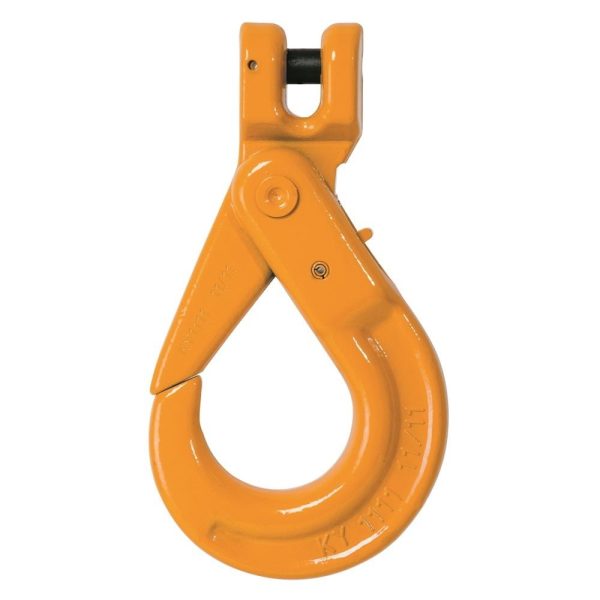

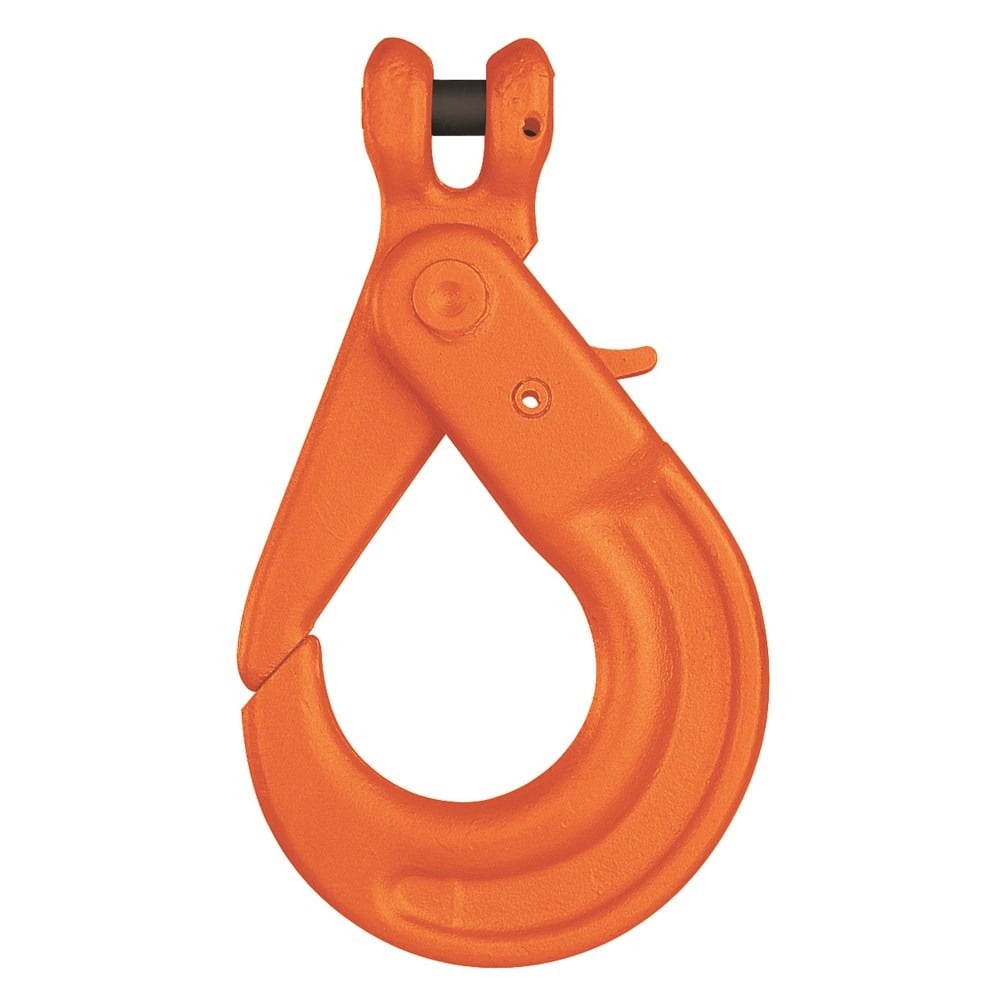

Self-Locking Hook G80 – Clevis

$55.00$308.00 ex. GST

*CONTACT OUR OFFICE FOR PRICING ON 22MM & 26MM*

Clear

Description

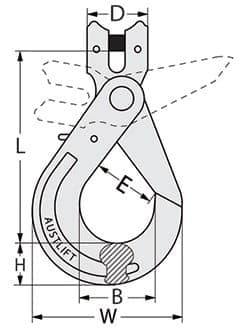

Size WLL (4:1) Ton E mm B mm H mm ø mm R mm
6mm 1.12 29 8.5 19.5 34 95.5
8mm 2 34 9.5 24 46 121
10mm 3.2 44 12 28.5 56 146
13mm 5.3 52 15 40 69 182
16mm 8 60 18 50.5 86 218
20mm 12.5 83 25 55 100 240
22mm 15 88 25.5 67 98 276.5
26mm 21.2 95.5 30 75 110 310.5



Self-Locking Hook G80 – Clevis

Additional information

Weight 0.5 kg
Grade

100, 80
