Rated Turnbuckle (Jaw/Jaw)

$11.00$1,567.50 ex. GST

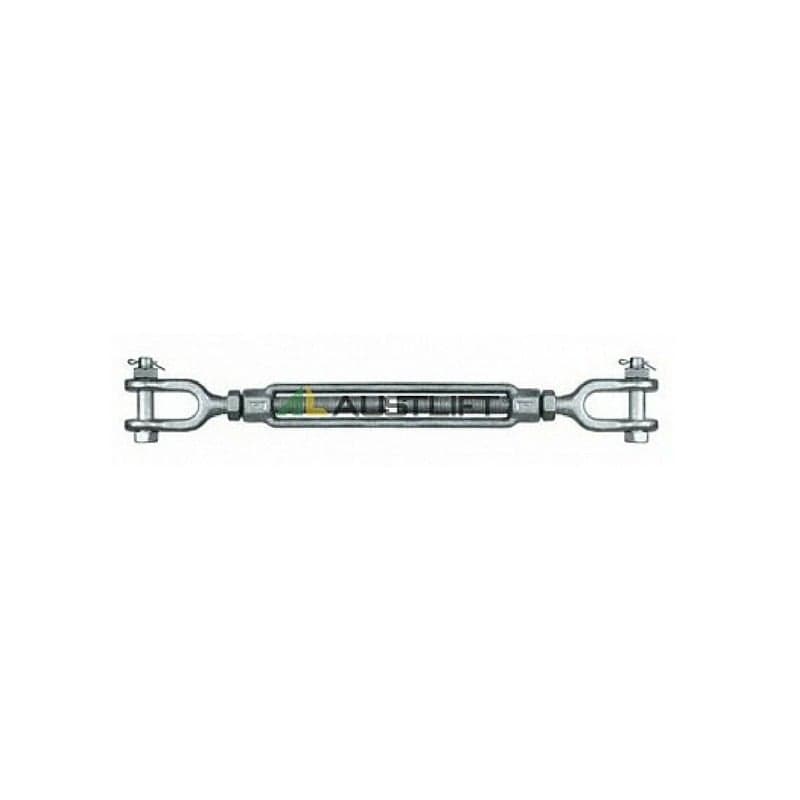

• Generally used for straight or in line tensioning in conjunction with Wire Rope and or Chain assemblies when heavy-duty straining and lifting applications are required.
• Manufactured from Grade P high tensile material quenched and tempered hot dipped galvanized finish suitable for outdoor use available in imperial sizing and jaw end fittings with Lock Nuts.
• Meets the design requirements of Federal Specifications FF-T-791 Type1 Form1 Class .
• Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL .
• Suitable for industrial lifting purposes.

Clear
SKU: TBJJ Category:

Description

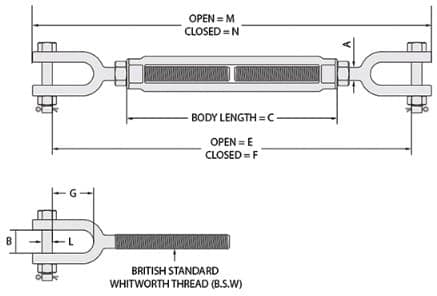

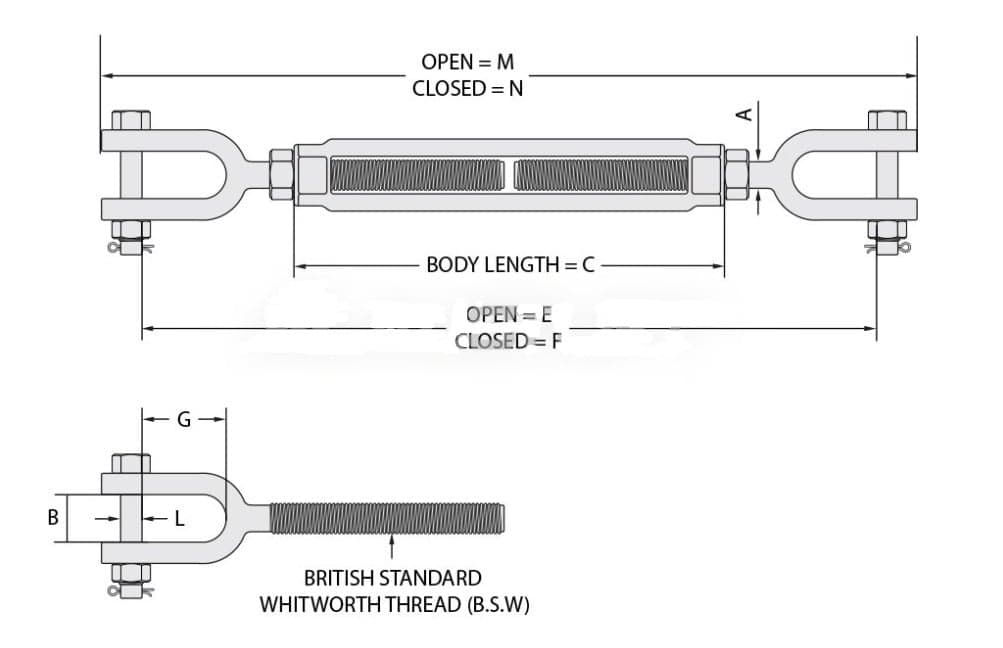

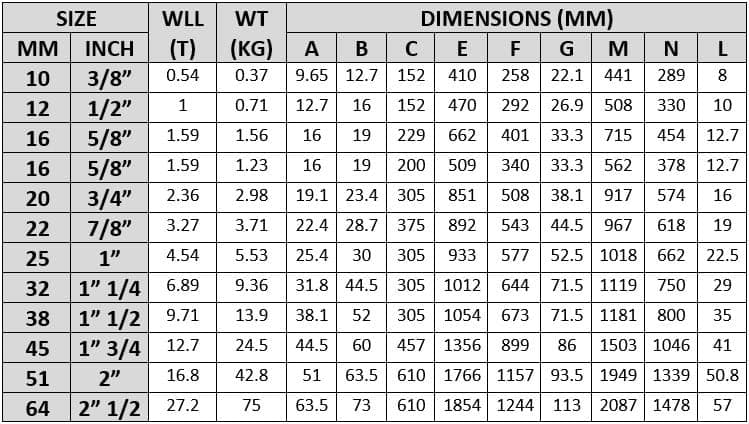

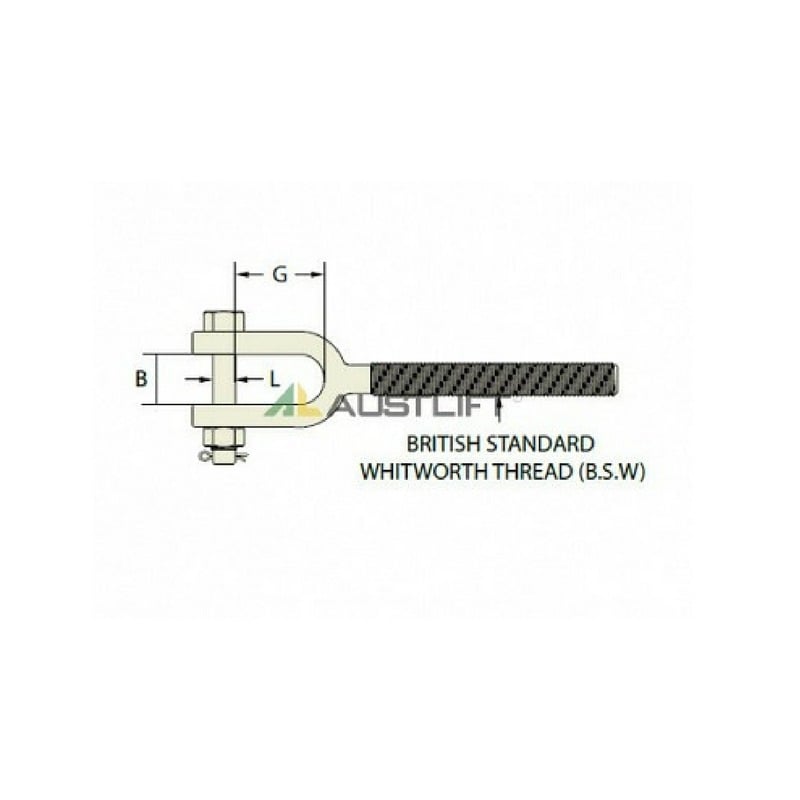

Size (mm) WLL (T) Weight (kg) A (mm) B (mm) C (mm) E (mm) F (mm) G (mm) M (mm) N (mm) L (mm)
10 0.54 0.37 9.65 12.7 152 410 258 22.1 441 289 8
12 1 0.71 12.7 16 152 470 292 26.9 508 330 10
16 1.59 1.56 16 19 229 662 401 33.3 715 454 13
16 1.59 1.23 16 19 152 509 325 33.3 562 378 13
20 2.36 2.98 19.1 23.4 305 851 508 38.1 917 574 16
22 3.27 3.71 22.4 28.7 305 892 543 44.5 967 618 19
25 4.54 5.53 25.4 30 305 933 577 52.5 1018 662 22.5
32 6.89 9.36 31.8 44.5 305 1012 644 71.5 1119 750 28
38 9.71 13.9 38.1 52 305 1054 673 71.5 1181 800 35
45 12.7 24.5 44.5 60 457 1356 899 86 1503 1046 41
51 16.8 42.8 51 63.5 610 1766 1157 93.5 1949 1339 50.8
64 27.2 75 63.5 73 610 1854 1244 113 2087 1478 57



Rated Turnbuckle (Jaw/Jaw)

Additional information

Weight 0.37 kg
Size

, , , , , , , , , ,

WLL (t)

, , , , , , , , , ,

Grade

Grade L, Grade M, Grade P, Grade S, Grade T, Grade V
