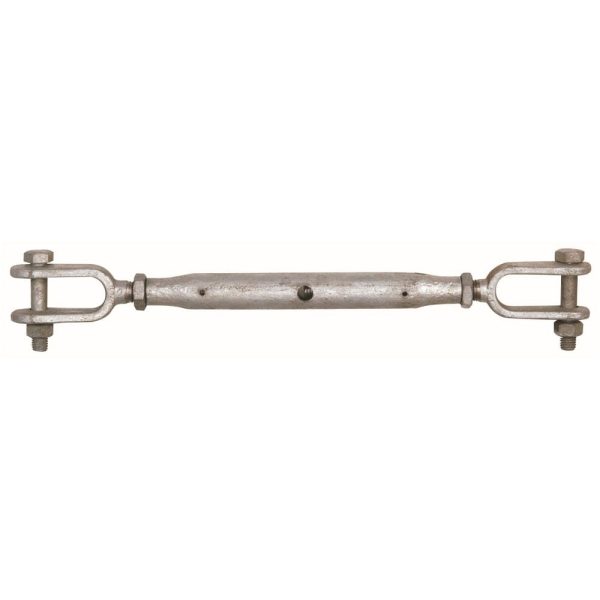

Rated Rigging Screw (Jaw/Jaw)

$13.20$126.50 ex. GST

• Generally used for straight or in line tensioning in conjunction with Wire Rope and or Chain assemblies when heavy duty straining and lifting applications are required.
• Manufactured from Grade P high tensile material quenched and tempered hot dipped galvanized finish suitable for outdoor use available in metric sizing and jaw end fittings with lock nuts.
• Meets the design requirements of AS2319 Proof tested to 2 x WLL and Minimum Break Force is 6 x WLL.
• Suitable for industrial lifting purposes.

Clear
SKU: RSJJ Category:

Description

This product is available in Grad L/P high tensile material.

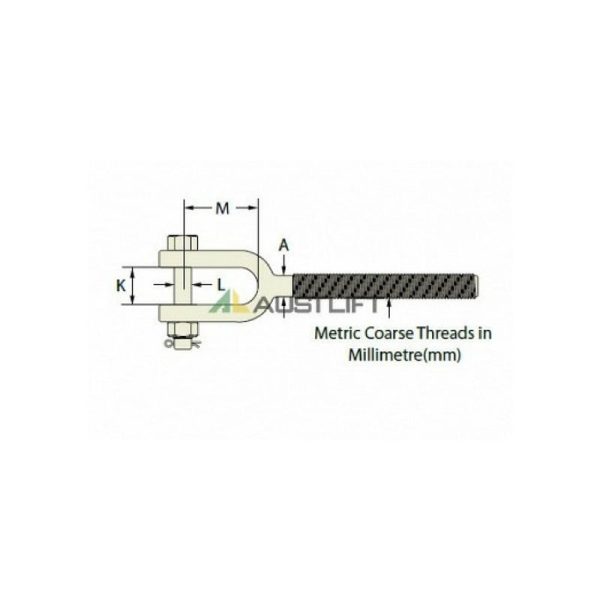

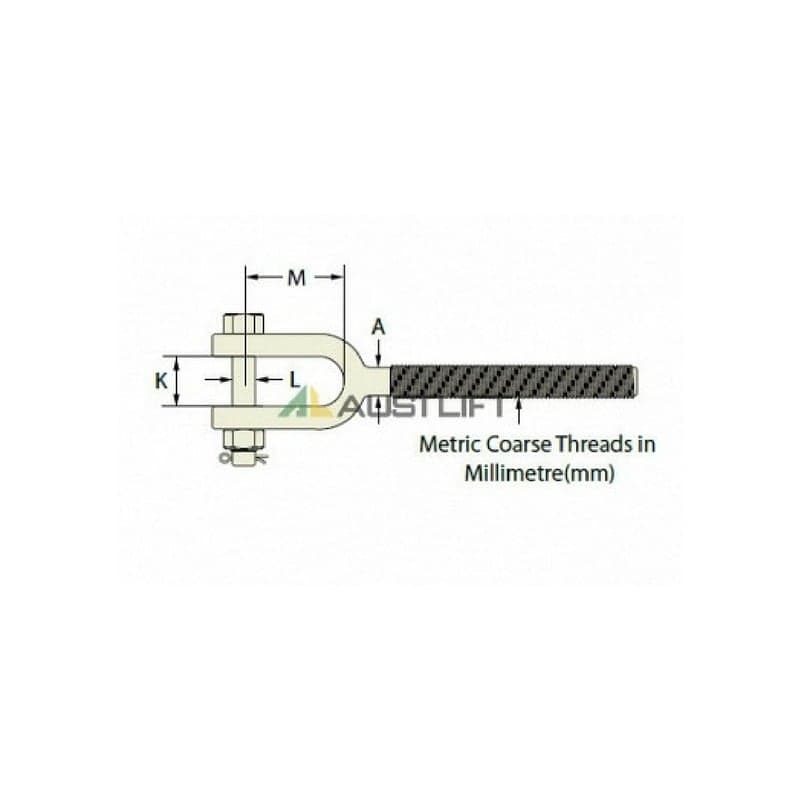

Size (mm) WLL (T) Weight (kg) A (mm) B (mm) C (mm) E (mm) F (mm) K (mm) M (mm) L (mm)
10 0.6 0.48 10 152 21 349 235 11 21 8
12 1 0.98 12 229 25 524 343 19 35 10
16 1.6 1.4 16 229 27 550 361 22 51 12
20 2.5 2.3 20 229 34 550 387 22 48 16
24 4 4.85 24 356 42 822 556 32 65 22
27 5 5.75 27 356 45 822 559 32 65 22
33 8 8.08 33 381 51 872 604 38 76 24
39 10 13.5 39 407 57 949 670 47 90 32
48 16 23 48 407 76 977 743 51 121 42
10 0.3 0.48 10 152 21 349 235 11 21 8
12 0.5 0.98 12 229 25 524 343 19 35 10
16 0.75 1.4 16 229 27 550 361 22 51 12
20 1.25 2.3 20 229 34 550 387 22 48 16
24 2.5 4.85 24 356 42 822 556 32 65 22
27 3 5.75 27 356 45 822 559 32 65 22
33 5 8.08 33 381 51 872 604 38 76 24
39 6 13.5 39 407 57 949 670 47 90 32
48 10 23 48 407 76 977 743 51 121 42

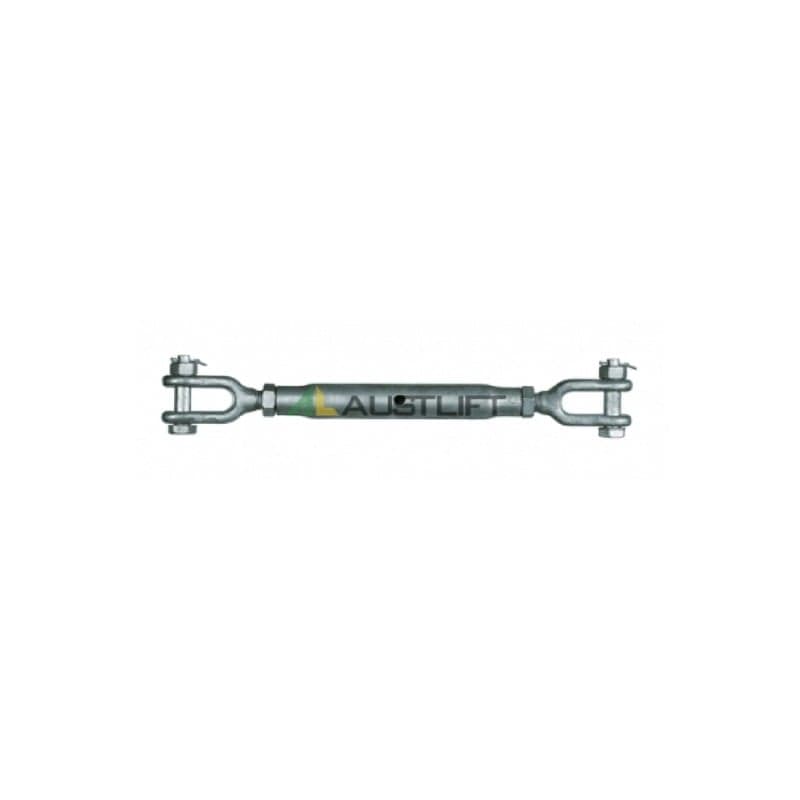

Rated Rigging Screw (Jaw/Jaw)

Additional information

Weight 0.48 kg
Size

, , , , , , , , , ,

WLL (t)

, , , , , , , , , ,

Grade

Grade L, Grade M, Grade P, Grade S, Grade T, Grade V
