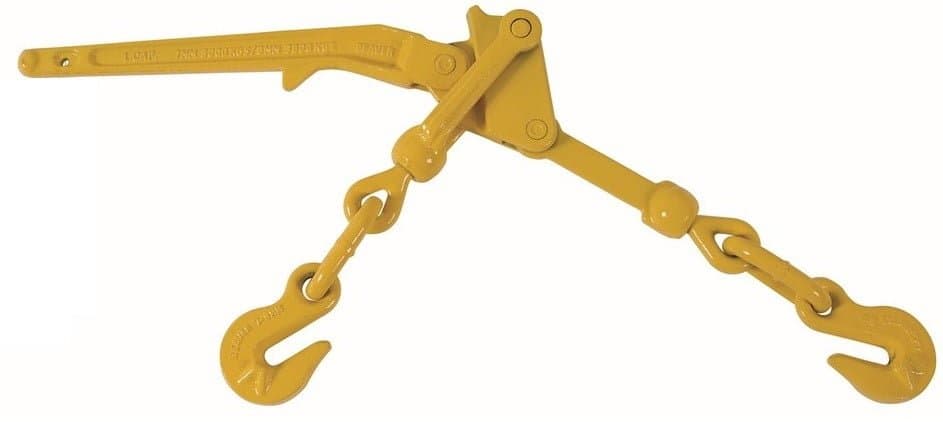

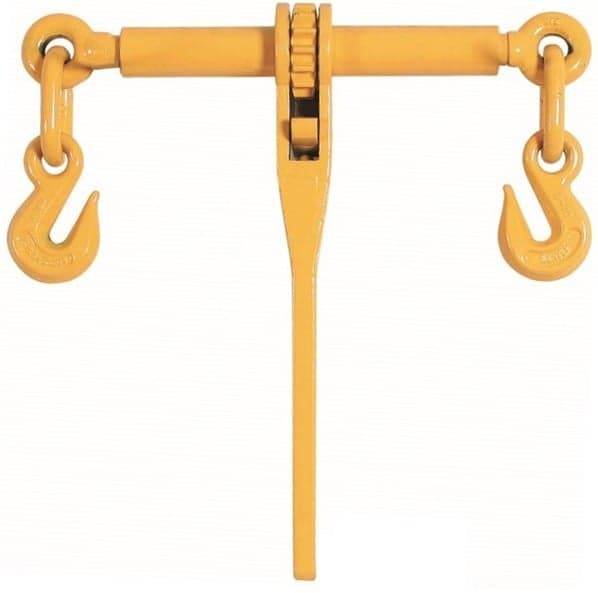

Load Binders

$0.00 ex. GST

Choose chain size

Clear
SKU: 202206 Category:

Description

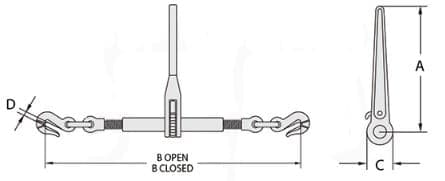

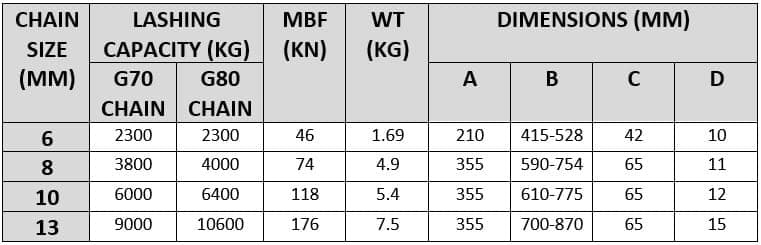

Chain size (mm) LC (kg) MBF (KN) Weight (kg) A (mm) C (mm) E-Open (mm) E-Closed (mm) G (mm)
6 2300 46 1.69 210 42 528 415 10
8 3800 74 4.9 355 65 754 590 11
10 6000 118 5.4 355 65 775 610 12
13 9000 176 7.5 355 65 870 700 15



Load Binders

Additional information

Weight 1.69 kg
Option

, ,

Size

, , ,
