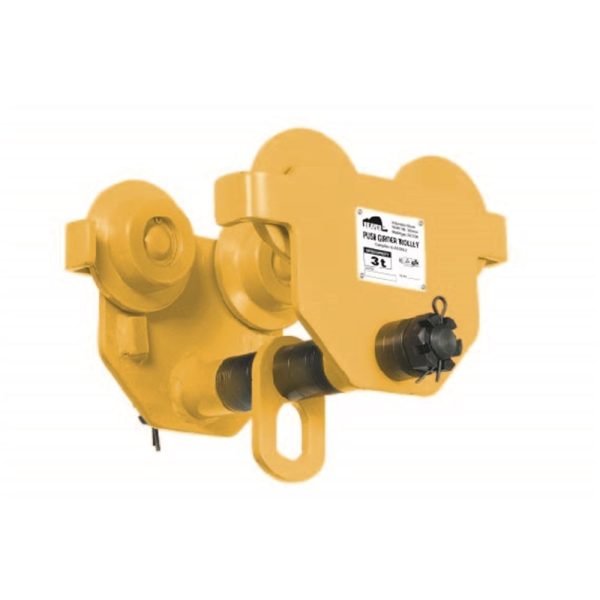

Girder Push Trolley

$120.00$1,000.00 ex. GST

– High quality sealed ball bearings.
– Identification tag with serial number.
– Proof tested to 2 x WLL with certificate.
– Fitted with anti-drop plates for safety.
– Low headroom by design.
– Complies to AS1418.2.

Clear
SKU: GT Category:

Description

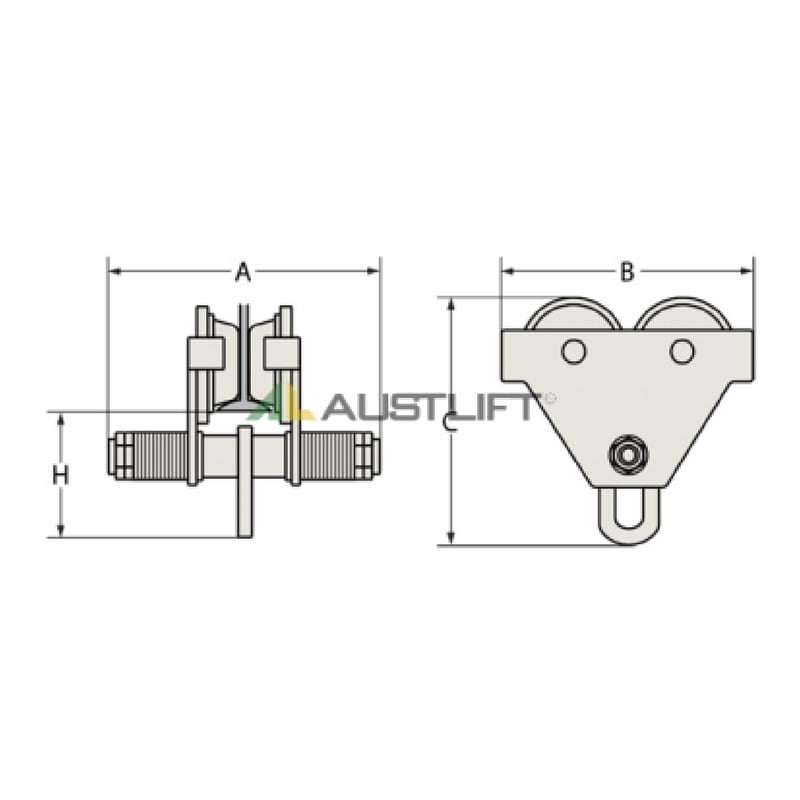

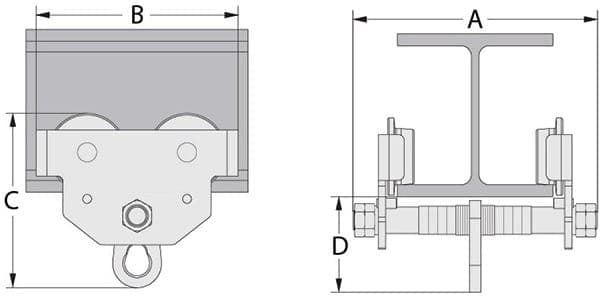

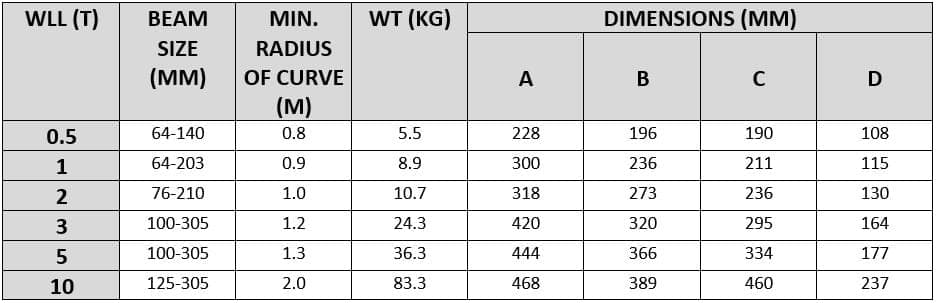

WLL (T)Beam Size (mm)Min radius of curve (mm)Weight (kg)A  (mm)B  (mm)C (mm)H (mm)
0.564-140.85.5228196190108
164-2030.98.9300236211115
276-210110.7318273236130
3100-3051.224.3420320295164
5100-3051.332.3444366334177
10125-305283.3468389460237



Girder Push Trolley

Additional information

Weight5.5 kg
WLL (t)

, , , , ,
