Permanent Magnetic Lifter

$385.00$1,501.50 ex. GST

Permanent Magnetic Lifters have a wide variety of uses for lifting and shifting steel products, flat plate and round bar, steel parts and finished steel goods etc. This versatile lifting device has the advantage of moving material without damaging the steel surface.

Clear
SKU: MAGNET Category:

Description

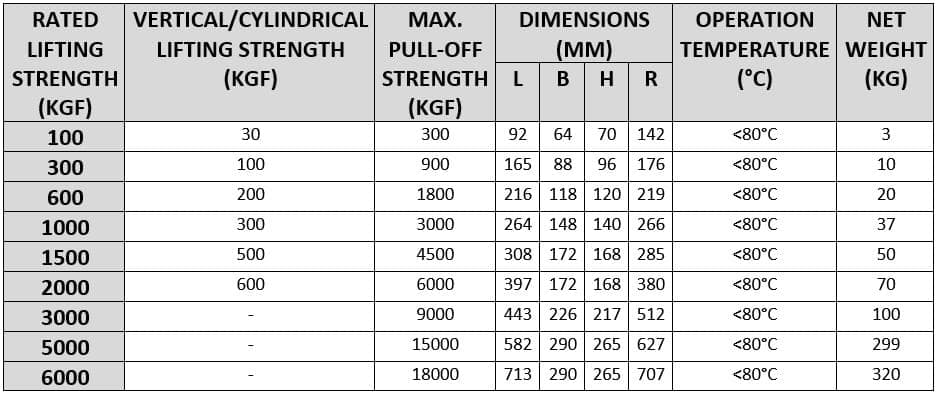

Rated Lifting Strength (Kgf) Vertical/Cylindrical Lifting Strength (Kgf) Max Pull-off Strength (Kgf) L mm W mm H mm R mm Operation Temperature °C
100 30 300 92 64 70 145 <80
200 60 600 114 72 86 145 <81
300 100 900 165 88 96 176 <82
600 200 1800 216 118 118 219 <83
1000 300 3000 264 148 138 266 <84



Permanent Magnetic Lifter

Additional information

WLL (t)

, , , ,
