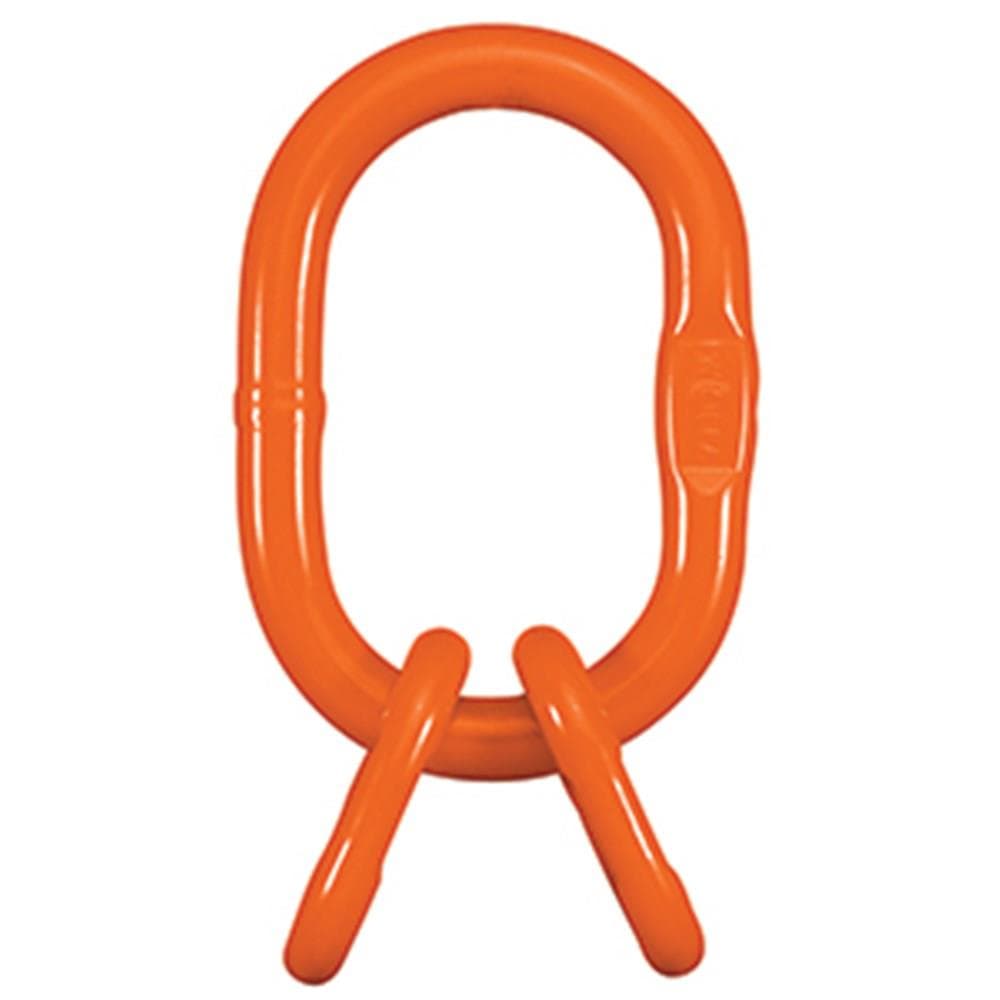

Master Link Assembly G80

$50.00$1,358.50 ex. GST

Clear
SKU: MHR Category:

Description

Size WLL (4:1) Ton A mm B mm D mm a mm b mm d mm s mm H mm
7mm 3.15 110 60 16 60 13 13 7 25
8mm 3.5 135 75 18 70 16 16 7 35
10mm 5.5 160 90 22 85 18 18 11 35
13mm 9.2 180 100 26 115 22 22 13 45
16mm 13.8 200 110 32 140 26 26 17 45
20mm 21.6 300 160 40 180 32 32
22mm 26 340 180 45 180 36 36
26mm 36.7 350 190 50 200 40 40
32mm 54.5 430 220 63 200 50 50



Master Link Assembly G80

Additional information

Weight 1.24 kg
Size

, , , , , , , , ,

Grade

100, 80
