Snatch / Sheave Blocks

$83.00$935.00 ex. GST

Clear
SKU: 139075F Category:

Description

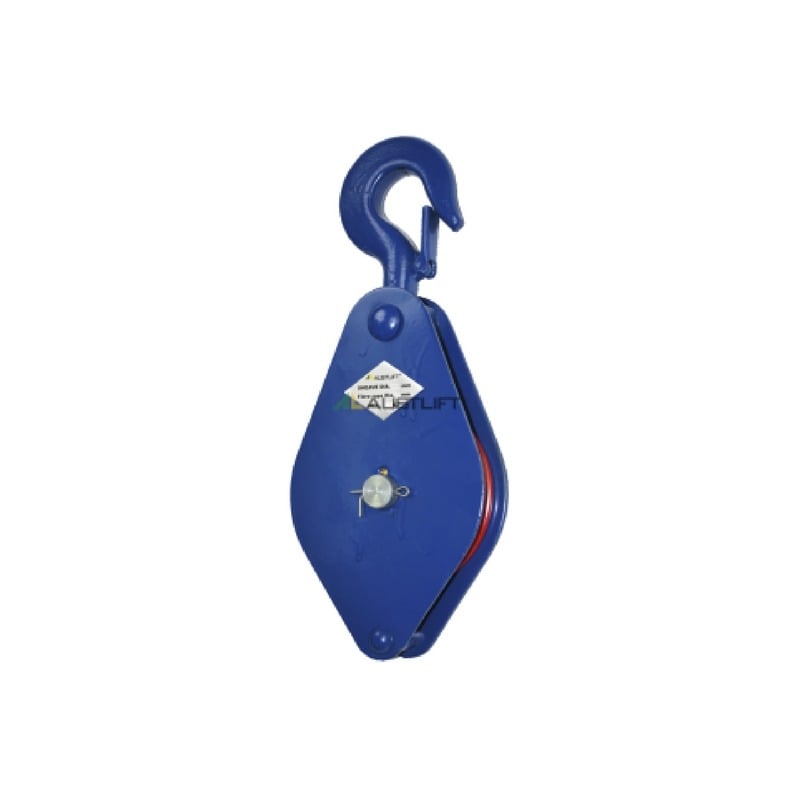

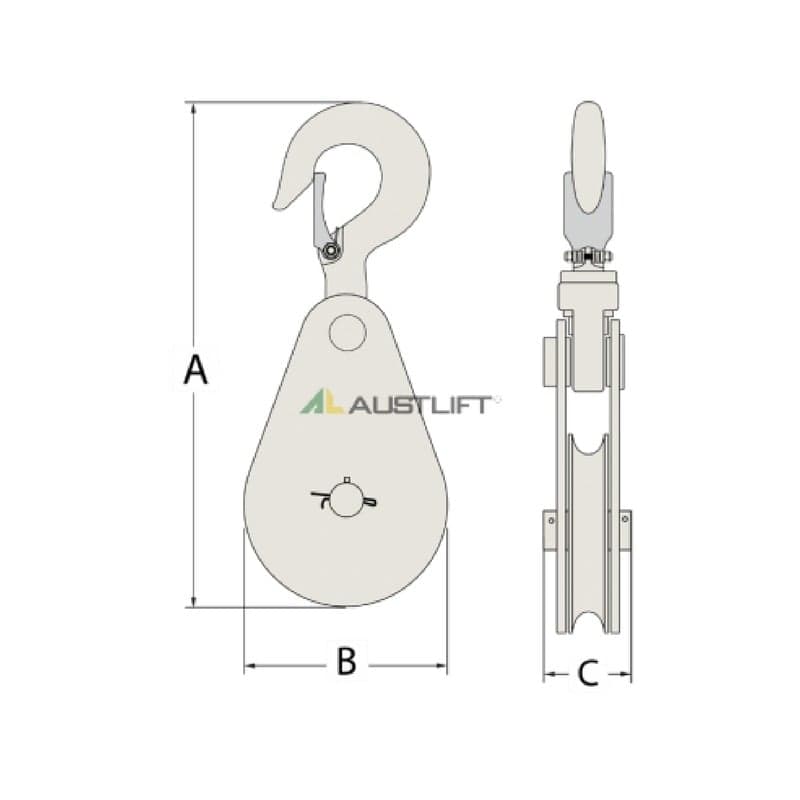

LIGHT DUTY SHEAVE BLOCK DIMENSIONS

WLL (kg) Sheave Diam (mm) Rope FIBRE (mm) Rope WIRE (mm) A mm B mm C mm
250 75 12 6 222.4 80 40
500 100 16 8 300.5 108 48.5
1000 125 20 10 346 140 53.5
1000 150 24 12 392 168 60

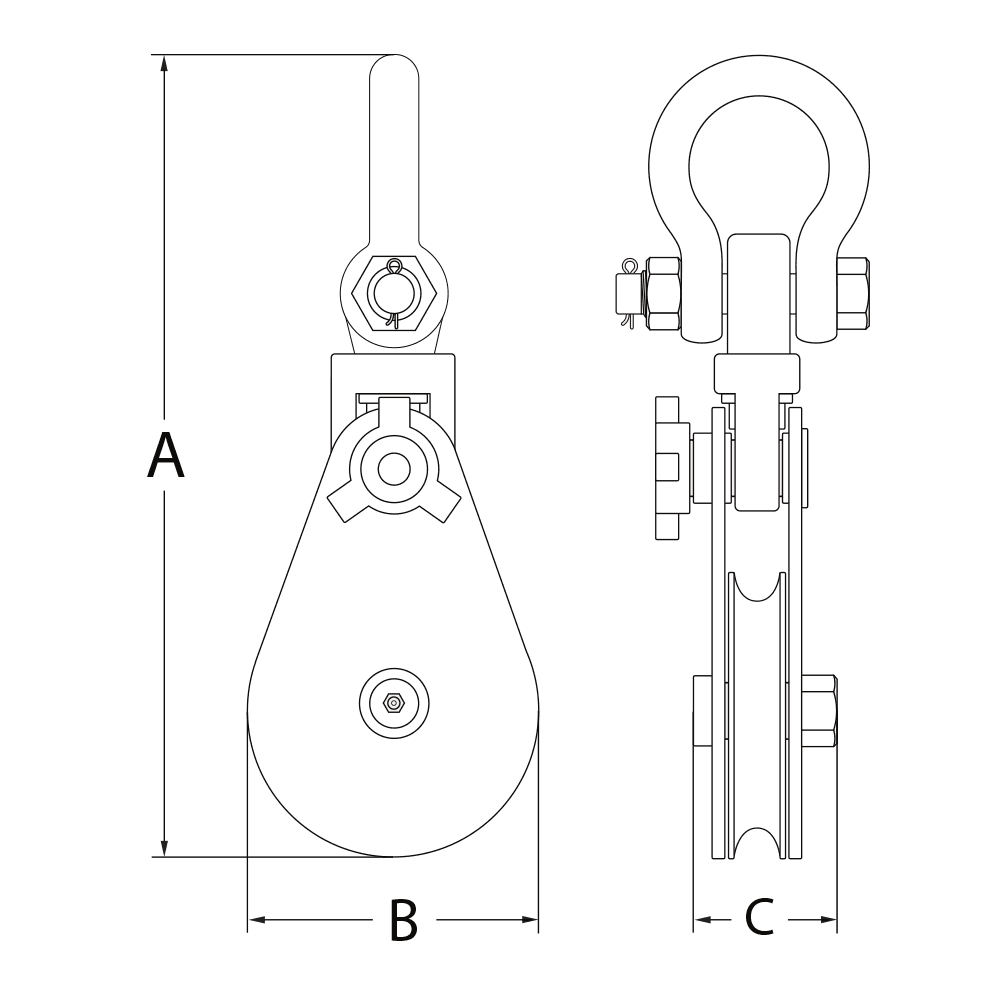

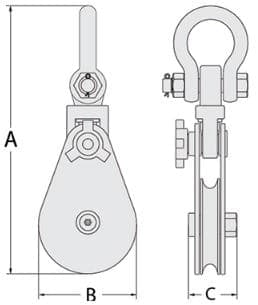

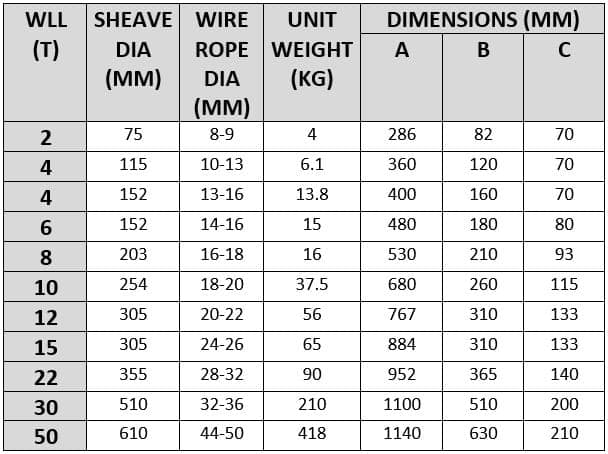

HEAVY DUTY SNATCH BLOCK SHACKLE HEAD DIMENSIONS

WLL (T) Sheaver Diam (mm) Wire Rope Diametre (mm) Unit weight (kg) A mm B mm C mm
2 75 8-9 4 286 82 70
4 115 10-13 6.1 360 120 70
4 152 10-13 13.8 400 160 70
6 152 13-16 15 480 180 80
8 203 16-18 16 530 210 93
10 254 18-20 37.5 680 260 115
12 305 20-22 56 767 310 133
15 305 24-26 65 884 310 133
22 355 28-32 90 952 365 140
30 510 32-36 210 1100 510 200
50 610 44-50 418 1140 630 210

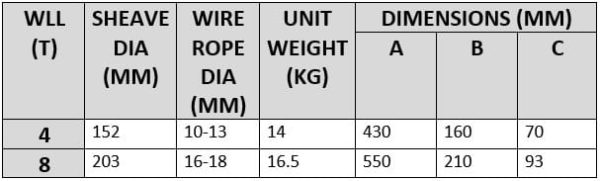

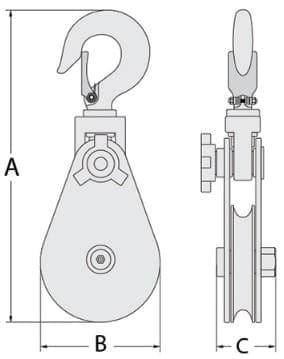

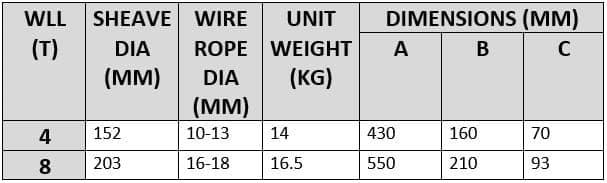

HEAVY DUTY SNATCH BLOCK HOOK HEAD DIMENSIONS

WLL (T) Sheaver Diam (mm) Wire Rope Diametre (mm) Unit weight (kg) A mm B mm C mm
4 152 10-13 14 430 160 70
8 203 16-18 16.5 550 210 93





Snatch / Sheave Blocks

Additional information

Rope Type

,

WLL (t)

, , , , , , , , , , , , ,

Option

,

Fittings

,
