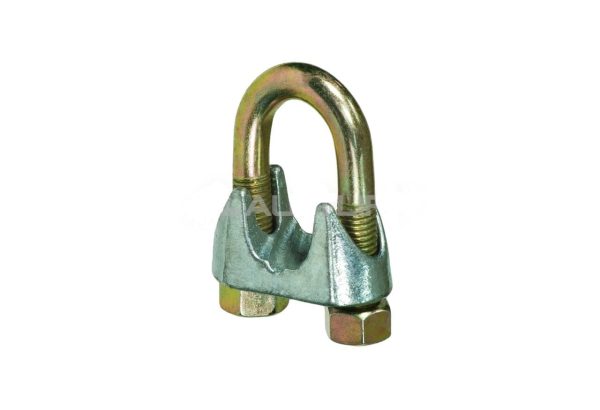

Heavy Duty Commercial Wire Rope Grip

$1.00$6.00 ex. GST

Clear
SKU: WRGCOMMERCIAL Category:

Description

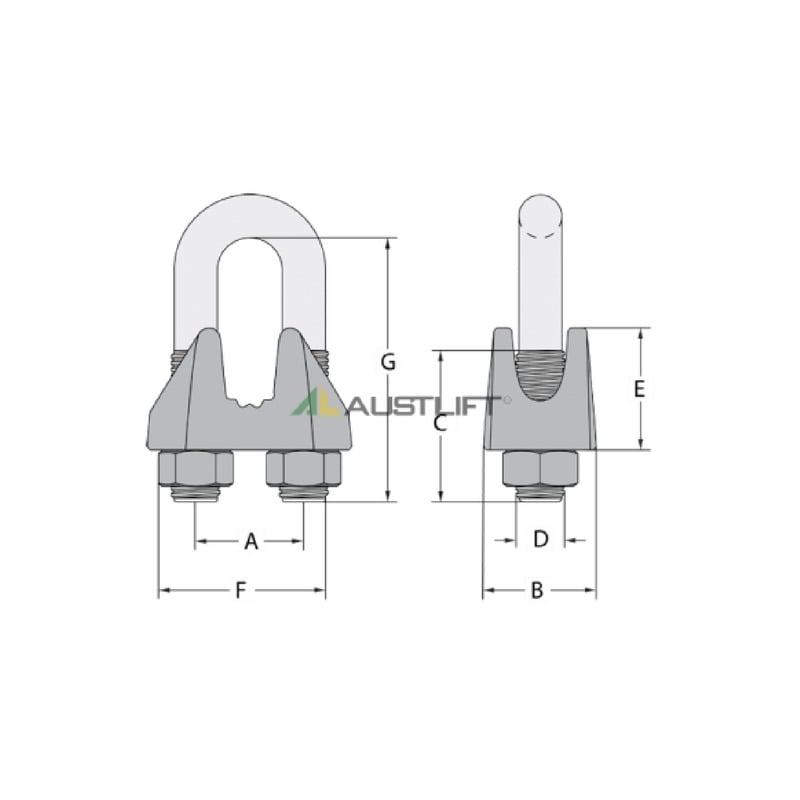

Size (mm) Weight (kg) A (mm) B (mm) C (mm) D (in) E (mm) F (mm) G (mm)
1.6-2 0.014 9.5 12 12.5 3/16 10 20.5 18.5
3 0.017 11 14 14 3/16 10.8 22 20
4-5 0.03 14.5 15 16.5 1/4 13 26 24
6 0.053 17 18.5 20 5/16 15 32 31.5
8 0.06 18.3 20 22 5/16 16 35 34
9-10 0.103 22.5 22 27 3/8 22 40.5 41.8
12-13 0.21 27 26 33 7/16 23.3 49 51
14 0.23 30 27.5 35 1/2 26 54 54
16 0.25 32.5 28.5 40 1/2 28 57.5 59
19-20 0.37 34.5 30 42 9/16 32 59.5 68.5
22 0.5 41 35 46 5/8 37 69 78
25 0.6 45.5 38 55 5/8 41 75 87.5



Heavy Duty Commercial Wire Rope Grip

Additional information

Weight 0.014 kg
Size

, , , , , , , , , , ,
