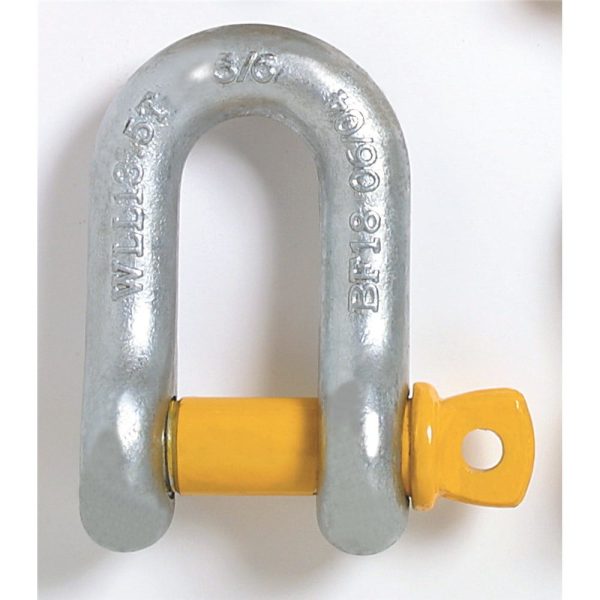

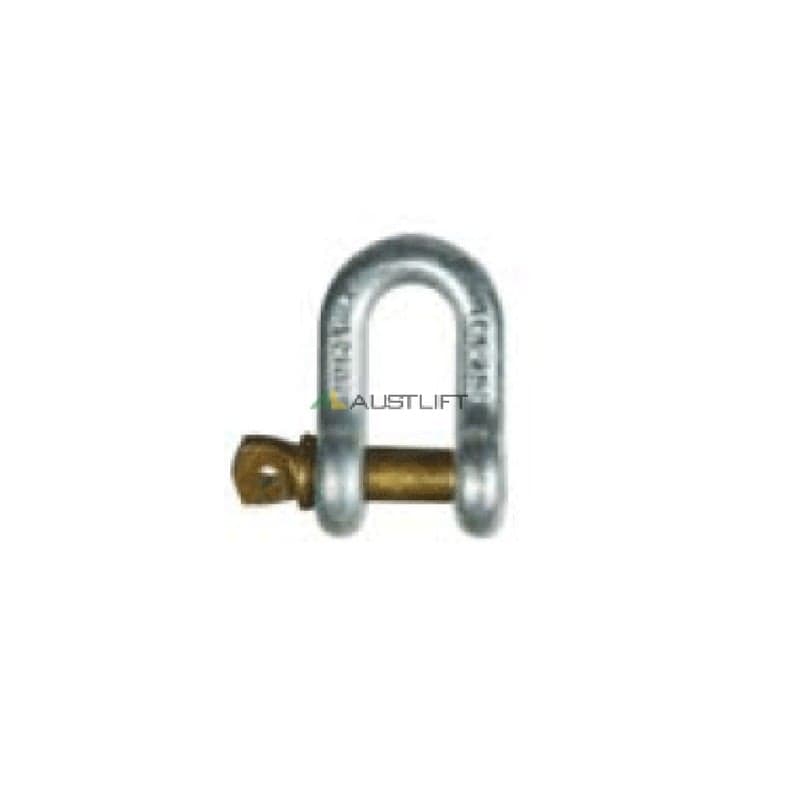

Grade ‘S’ Shackle, Dee Type, Gold Screw Pin

$2.00$420.00 ex. GST

  • Conforms to AS2741 manufactured from Grade “S” material in Dee configuration with Screw Pin hot dipped galvanized.
  • Marked with working load limit in tonnes, quality grade, batch numbered, nominal size in millimeter and supplier identification.
  • Proof tested to 2 x working load limit, with a minimum break force of 6 x work load limit.
  • Suitable for lifting applications.
Clear
SKU: DS Category:

Description

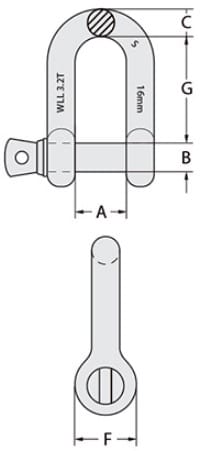

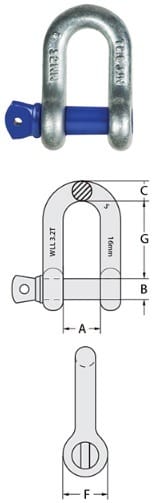

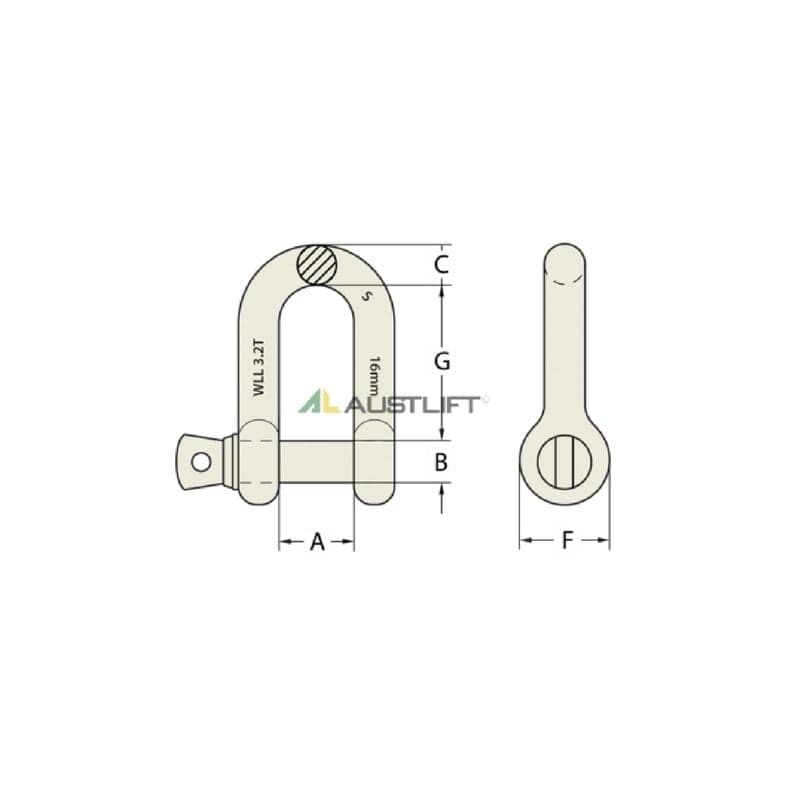

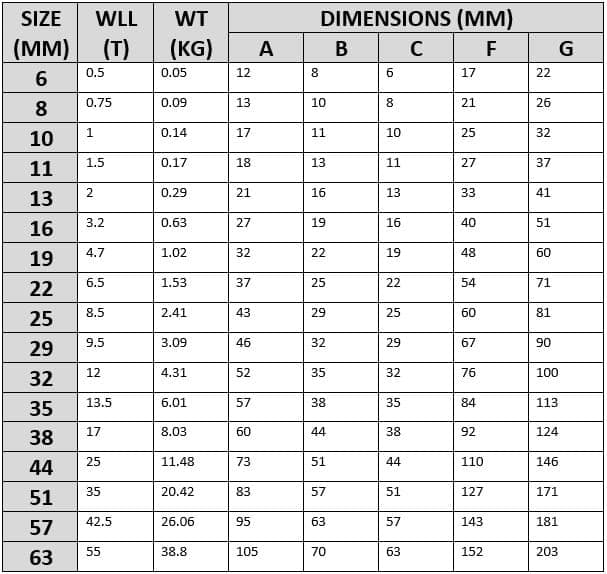

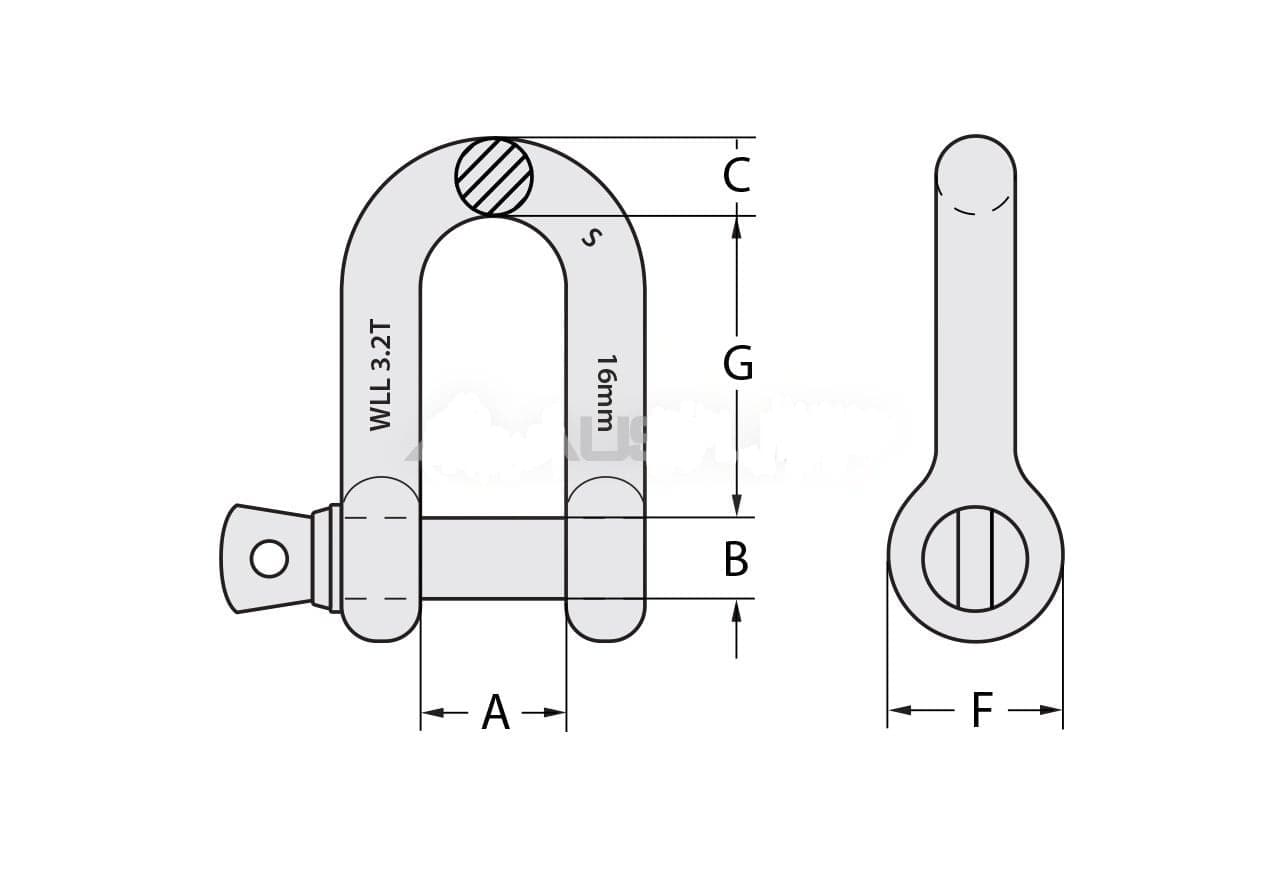

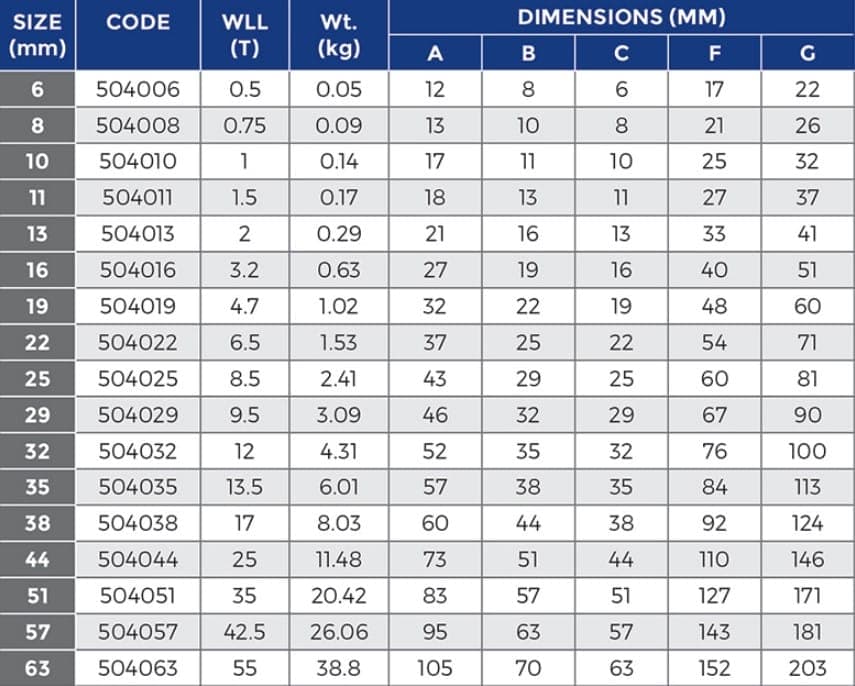

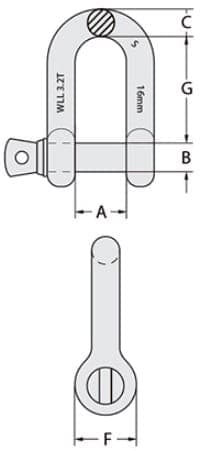

Size (mm) WLL (T) Weight (kg) A (mm) B (mm) C (mm) F (mm) G (mm)
6 0.5 0.05 12 8 6 17 22
8 0.75 0.09 13 10 8 21 26
10 1 0.14 17 11 10 25 32
11 1.5 0.17 18 13 11 27 37
13 2 0.29 21 16 13 33 41
16 3.2 0.63 27 19 16 40 51
19 4.7 1.02 32 22 19 48 60
22 6.5 1.53 37 25 22 54 71
25 8.5 2.41 43 29 25 60 81
29 9.5 3.09 46 32 29 67 90
32 12 4.31 52 35 32 76 100
35 13.5 6.01 57 38 35 84 113
38 17 8.03 60 44 38 92 124
44 25 13.79 73 51 44 110 146
51 35 20.42 83 57 51 127 171
57 42.5 26.06 95 63 57 143 181
63 55 38.8 105 70 63 152 203



Grade ‘S’ Shackle, Dee Type, Gold Screw Pin

Additional information

Weight 0.05 kg
WLL (t)

, , , , , , , , , , , , , , , ,
