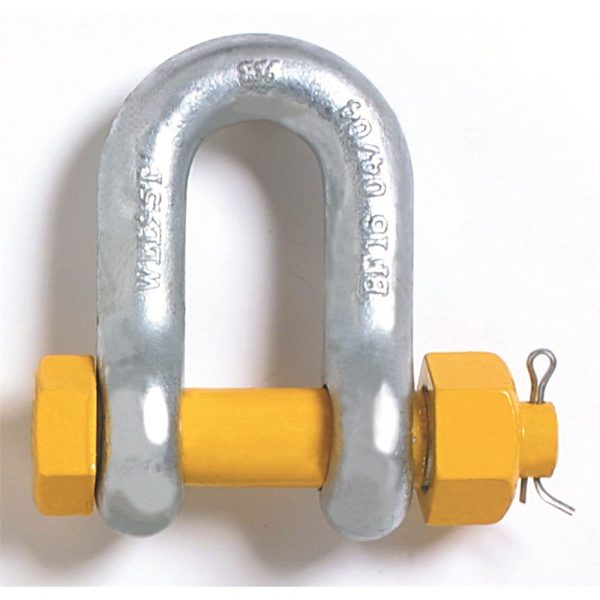

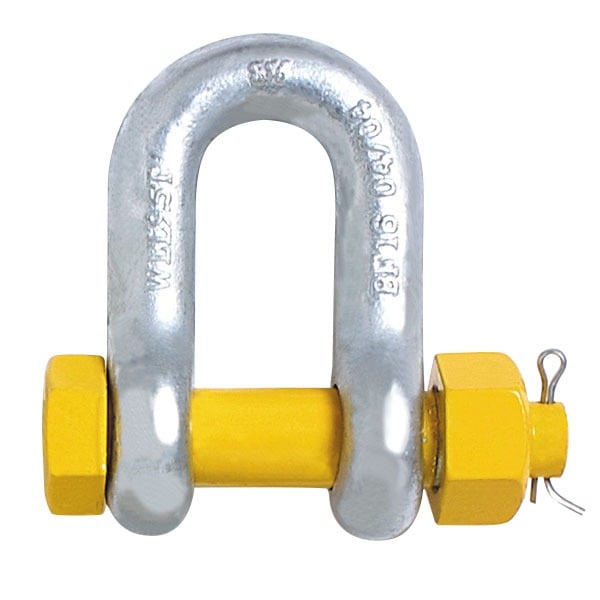

Grade ‘S’ Shackle, Dee Type, Gold Safety Pin

$5.00$900.00 ex. GST

  • Conforms to AS2741 manufactured from Grade “S” material in Dee configuration with Safety Pin hot dipped galvanized.
  • Marked with working load limit in tonnes, quality grade, batch numbered, nominal size in millimeter and supplier identification.
  • Proof tested to 2 x working load limit, with a minimum break force of  6 x work load limit.
  • Suitable for lifting application
Clear
SKU: DSS Category:

Description

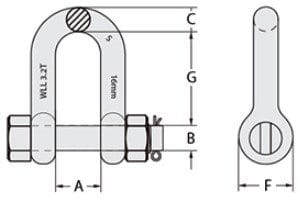

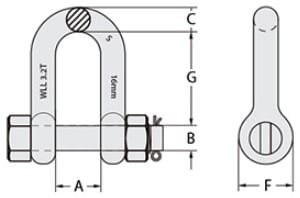

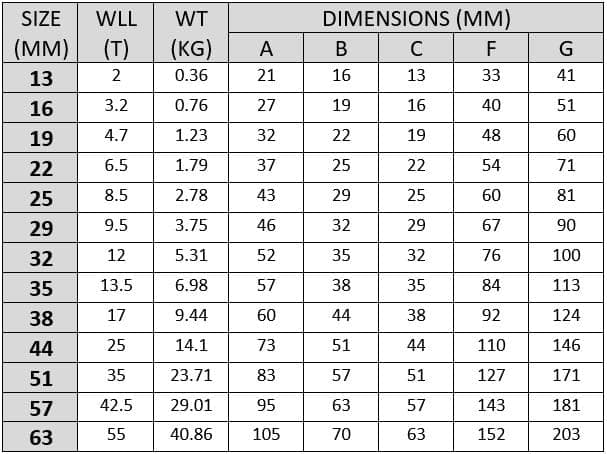

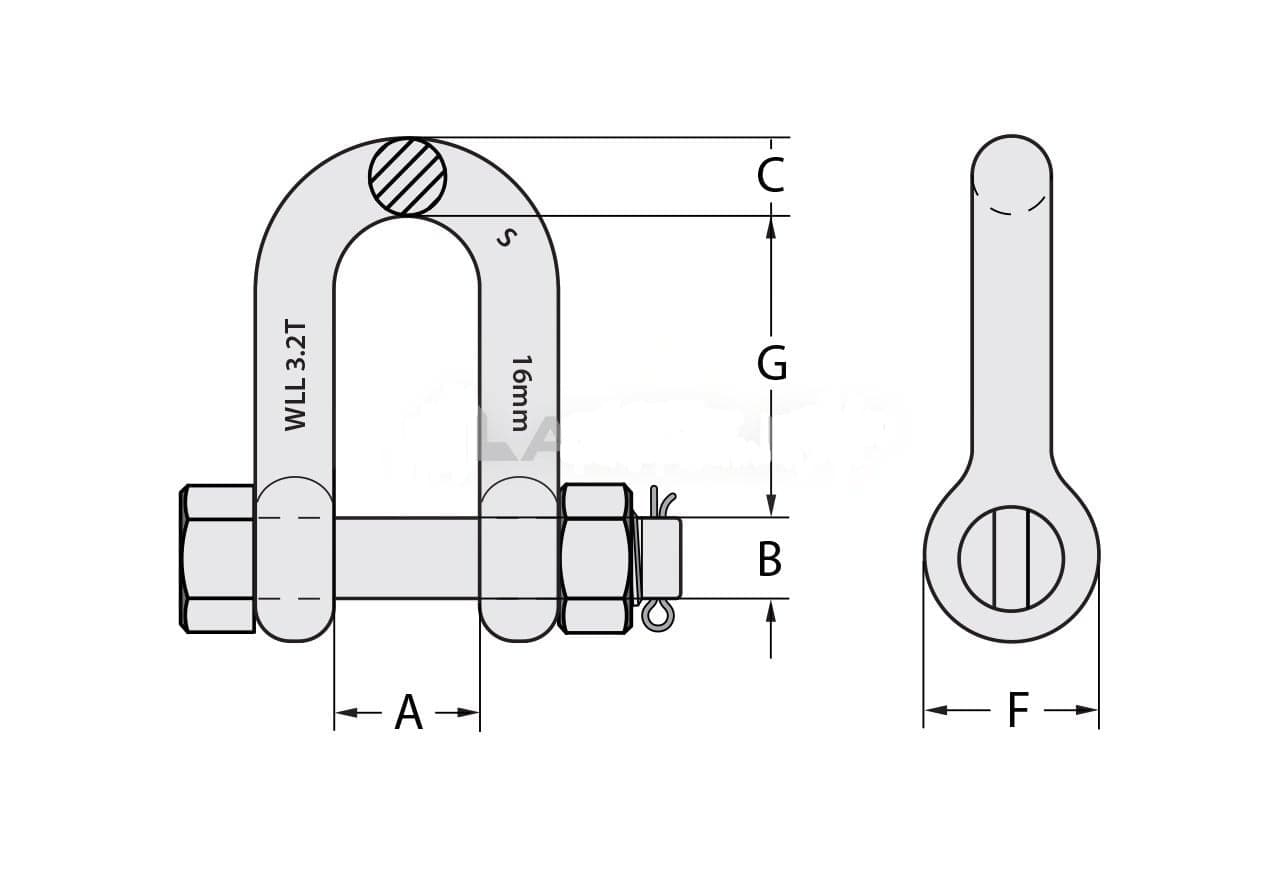

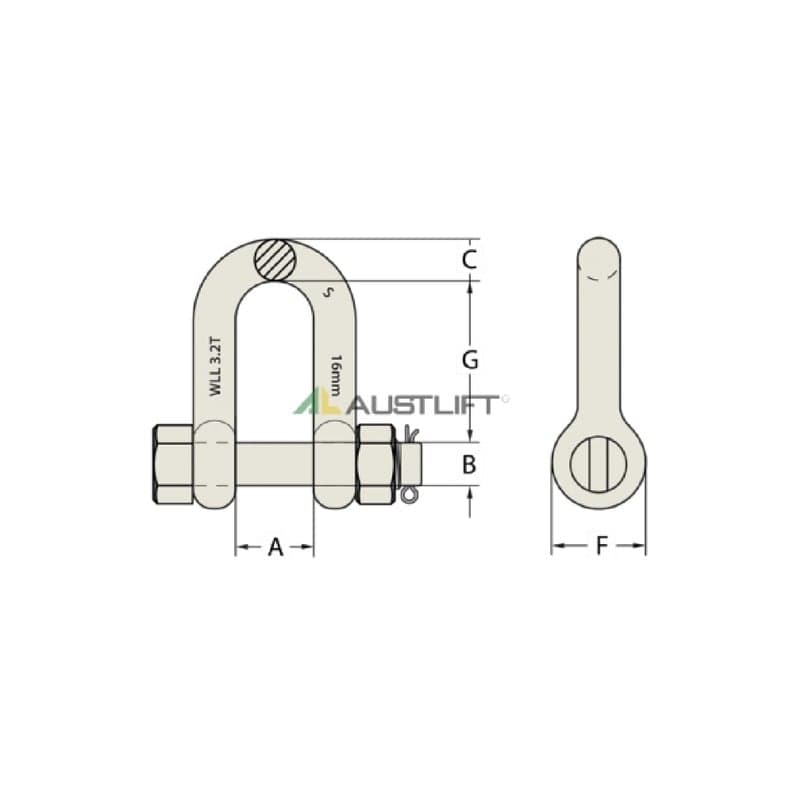

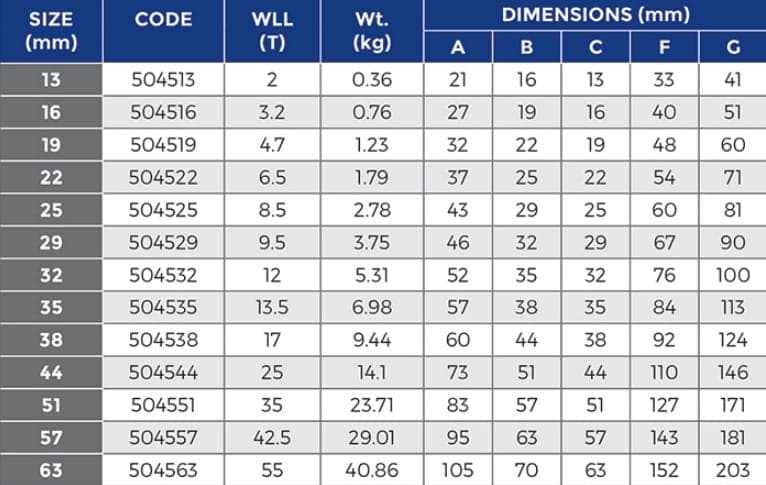

Size (mm) WLL (T) Weight (kg) A (mm) B (mm) C (mm) F (mm) G (mm)
13 2 0.36 21 16 13 33 41
16 3.2 0.76 27 19 16 40 51
19 4.7 1.23 32 22 19 48 60
22 6.5 1.79 37 25 22 54 71
25 8.5 2.78 43 29 25 60 81
29 9.5 3.75 46 32 29 67 90
32 12 5.31 52 35 32 76 100
35 13.5 6.98 57 38 35 84 113
38 17 9.44 60 44 38 92 124
44 25 15.39 73 51 44 110 146
51 35 23.71 83 57 51 127 171
57 42.5 29.01 95 63 57 143 181
63 55 44.58 105 70 63 152 203



Grade ‘S’ Shackle, Dee Type, Gold Safety Pin

Additional information

Weight 0.36 kg
WLL (t)

, , , , , , , , , , , , , ,
