Grade ‘S’ Shackle, Bow Type, Gold Screw Pin

$2.00$420.00 ex. GST

  • Conforms to AS2741 manufactured from Grade “S” material in bow configuration with Screw Pin hot dipped galvanized.
  • Marked with working load limit in tonnes, quality grade, batch numbered, nominal size in millimeter and supplier identification.
  • Proof tested to 2 x working load limit, with a minimum break force of 6 x work load limit.
  • Suitable for lifting applications.
Clear
SKU: BS Category:

Description

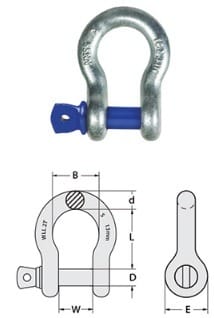

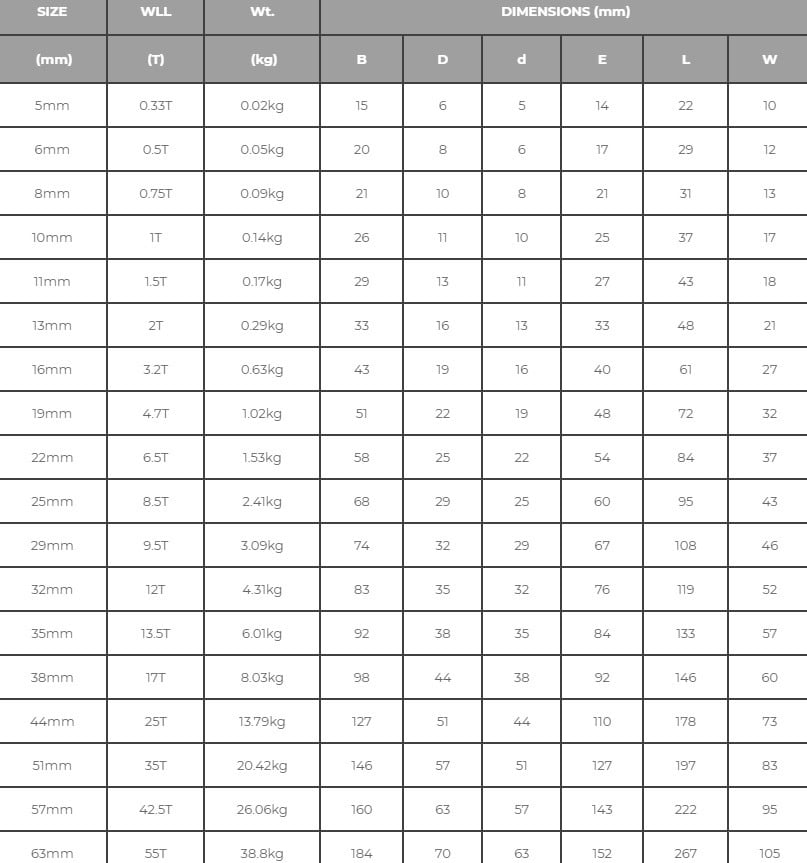

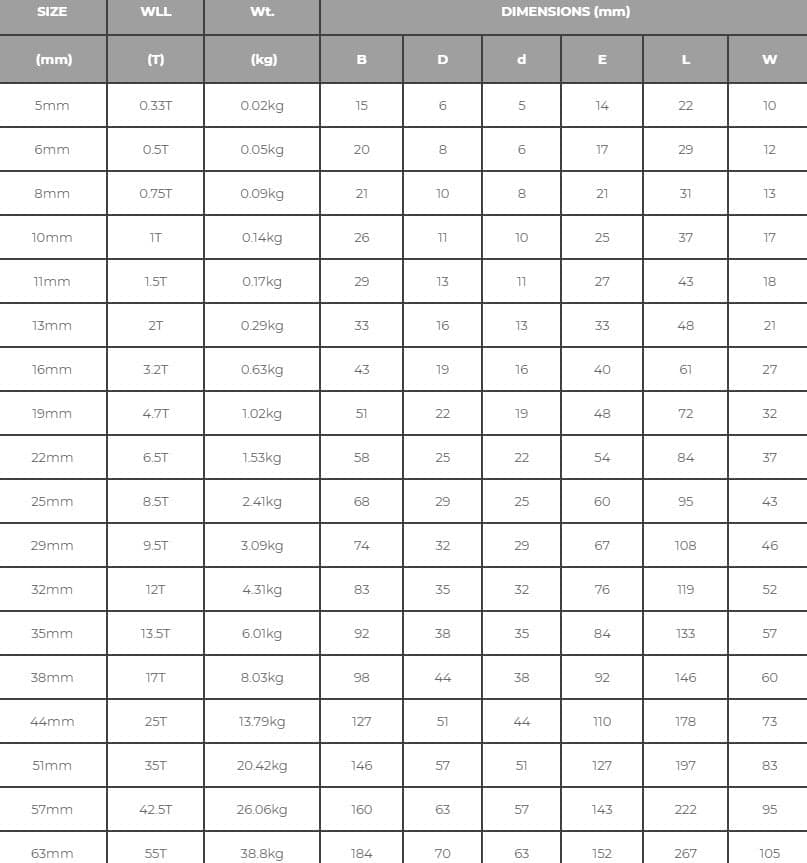

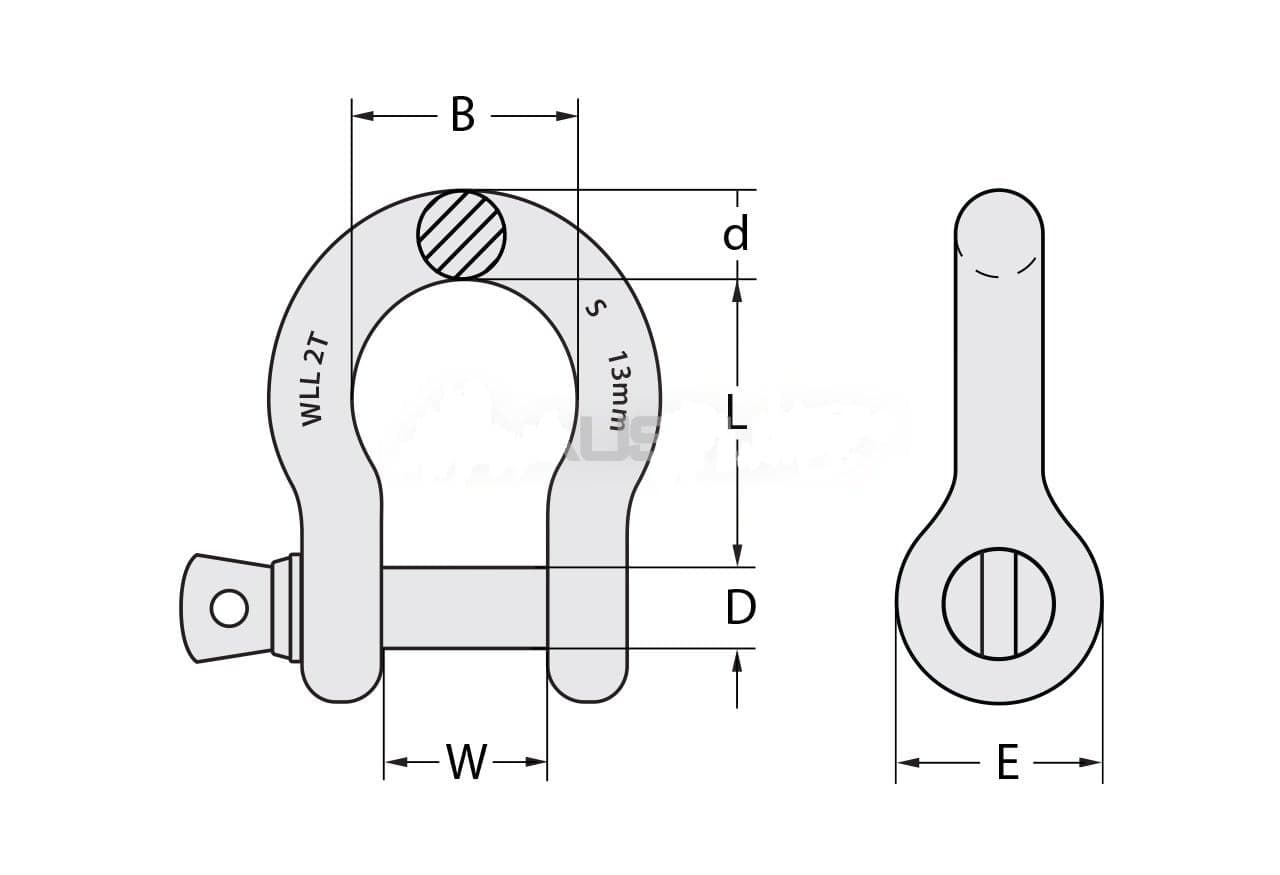

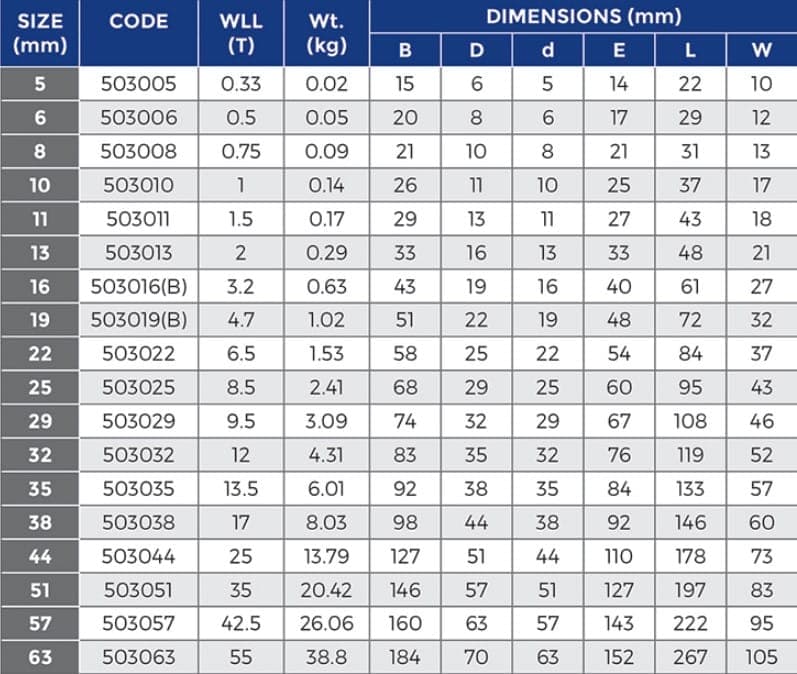

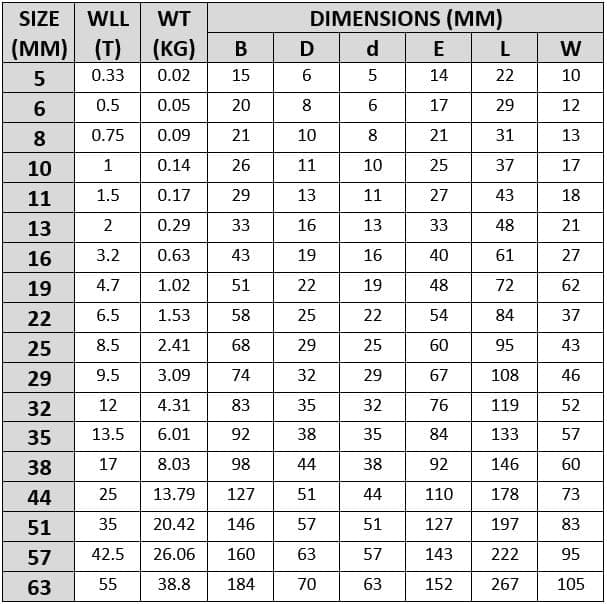

Size (mm) WLL (T) B (mm) D(mm) d (mm) E (mm) L (mm) W (mm)
5 0.33 1502 65 5 14 22 10
5 0.5 20 8 6 17 29 12
8 0.75 21 10 8 21 31 13
10 1 26 11 10 25 37 17
11 1.5 29 13 11 27 43 18
13 2 33 16 13 33 48 21
16 3.2 43 19 16 40 61 27
19 4.7 51 22 19 48 72 32
22 6.5 58 25 22 54 84 37
25 8.5 68 29 25 60 95 43
29 9.5 74 32 29 67 108 46
32 12 83 35 32 76 119 52
35 13.5 92 38 35 84 133 57
38 17 98 44 38 92 146 60
44 25 127 51 44 110 178 73
51 35 146 57 51 127 197 83
57 42.5 160 63 57 143 222 95
63 55 184 70 63 152 267 105
Grade ‘S’ Shackle, Bow Type, Gold Screw Pin

Additional information

Weight 1.02 kg
WLL (t)

, , , , , , , , , , , , , , , ,
