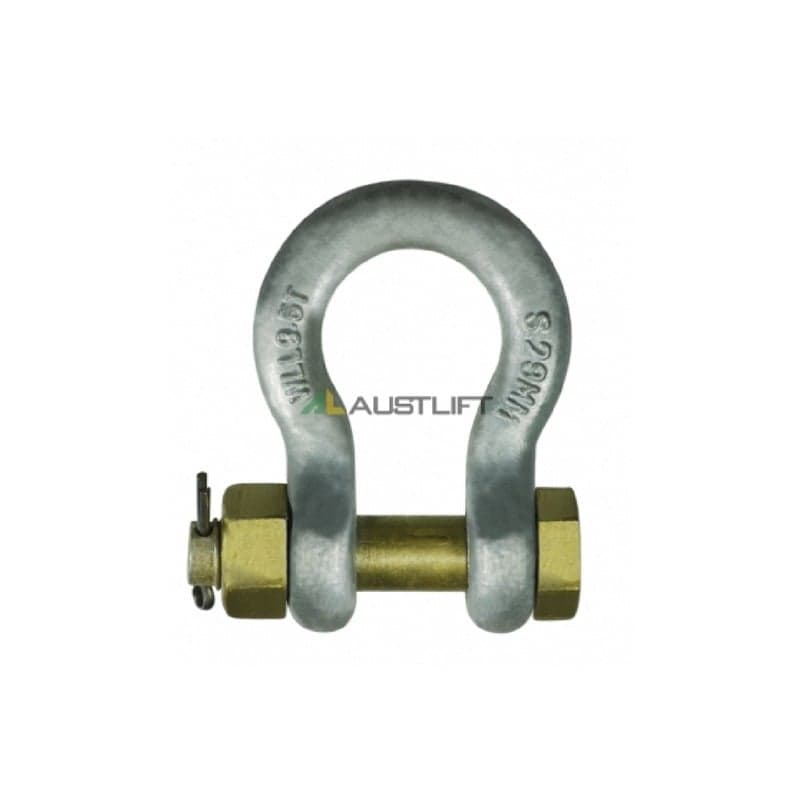

Grade ‘S’ Shackle, Bow Type, Gold Safety Pin

$5.00$900.00 ex. GST

  • Conforms to AS2741 manufactured from Grade “S” material in Bow configuration with Safety Pin hot dipped galvanized.
  • Marked with working load limit in tonnes, quality grade, batch numbered, nominal size in millimeter and supplier identification.
  • Proof tested to 2 x working load limit, with a minimum break force of 6 x work load limit.
  • Suitable for lifting applications.
Clear
SKU: BSS Category:

Description

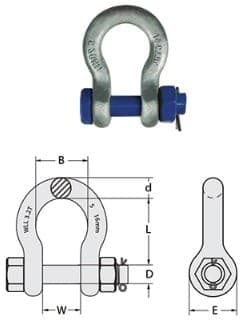

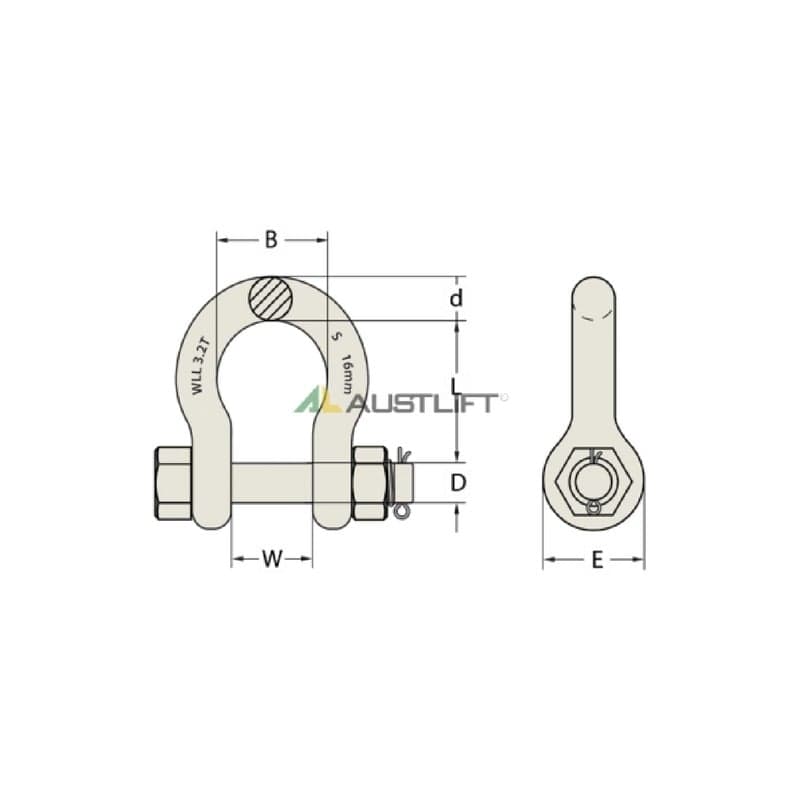

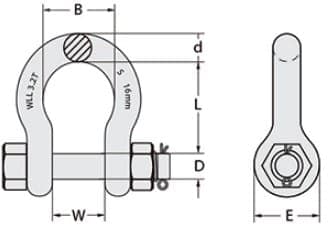

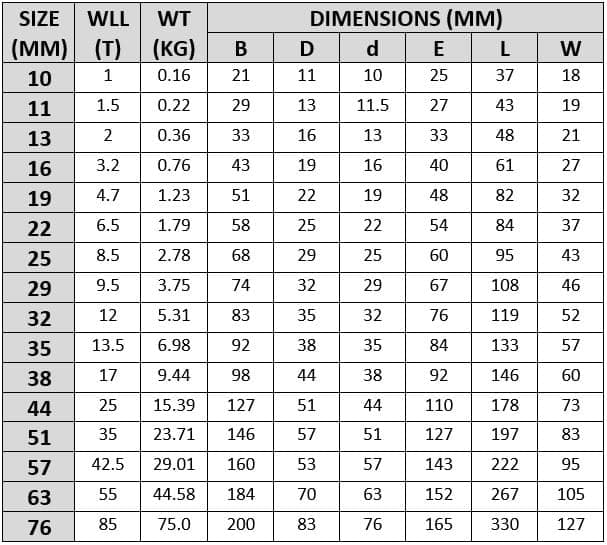

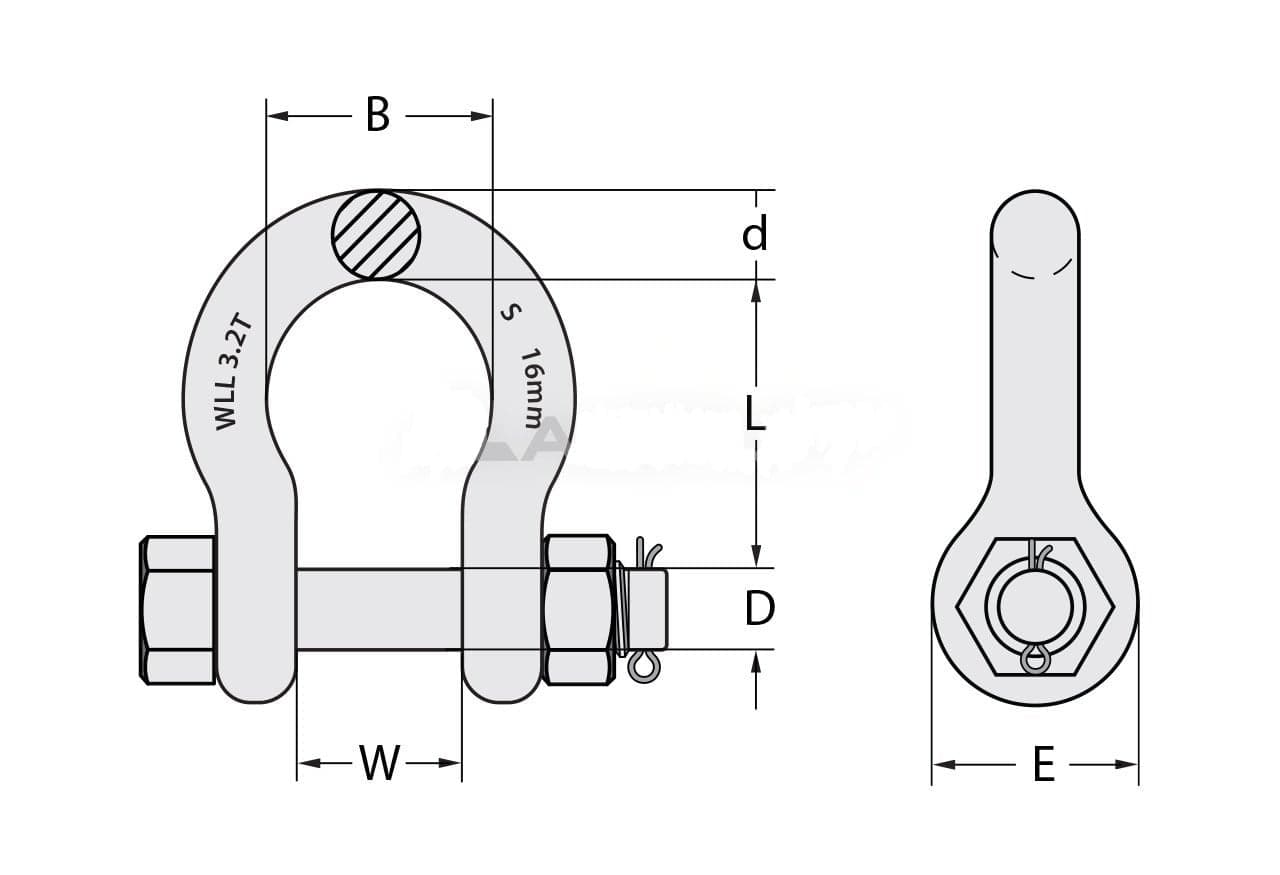

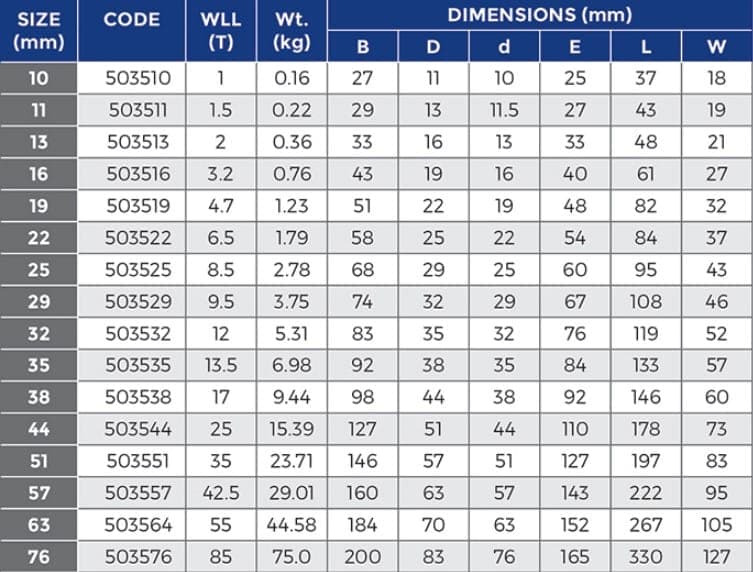

Size (mm) WLL (T) Weight (kg) B (mm) D (mm) d (mm) e (mm) L (mm) W (mm)
13 2 0.36 33 16 13 33 48 21
16 3.2 0.76 43 19 16 40 61 27
19 4.7 1.23 51 22 19 48 82 32
22 6.5 1.79 58 25 22 54 84 37
25 8.5 2.78 68 29 25 60 95 43
29 9.5 3.75 74 32 29 67 108 46
32 12 5.31 83 35 32 76 119 52
35 13.5 6.98 92 38 35 84 133 57
38 17 9.44 98 44 38 92 146 60
44 25 15.39 127 51 44 110 178 73
51 35 23.71 146 57 51 127 197 83
57 42.5 29.01 160 63 57 143 222 95
63 55 44.58 184 70 63 152 267 105
76 85 69.87 200 83 76 165 330 127
89 120 129.31 241 95 89 203 381 153
102 150 153.36 279 108 102 229 432 165



Grade ‘S’ Shackle, Bow Type, Gold Safety Pin

Additional information

Weight 0.36 kg
WLL (t)

, , , , , , , , , , , , , , ,
