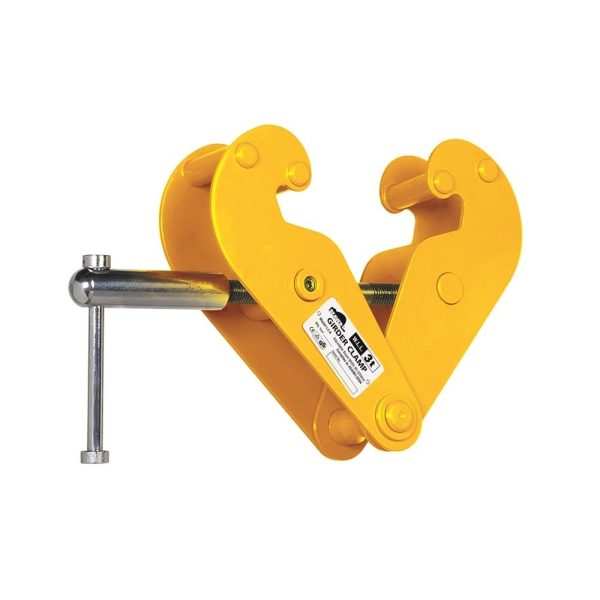

Girder Clamp

$115.50$308.00 ex. GST

– Capacities are available from 1T to 10T.
– Can use on material hardness up to 37RC.
– Individually serial numbered comes with Test Certificate and user manual.
– Complies to AS4991 &AS 1418.
– Can ONLY be used on vertical lift.

Clear
SKU: GC Category:

Description

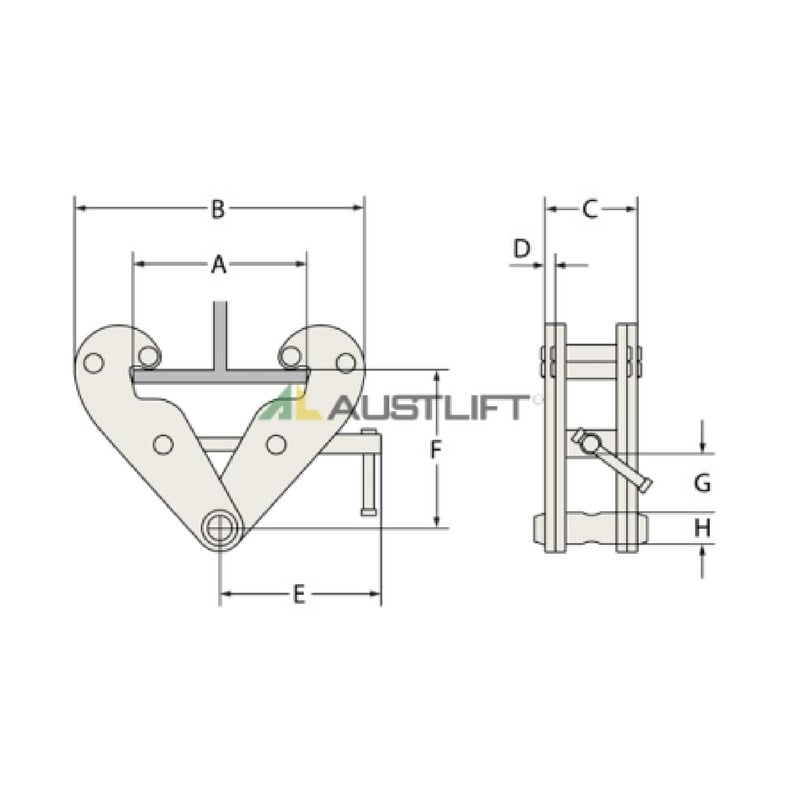

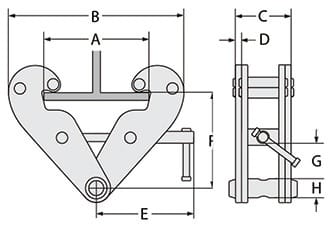

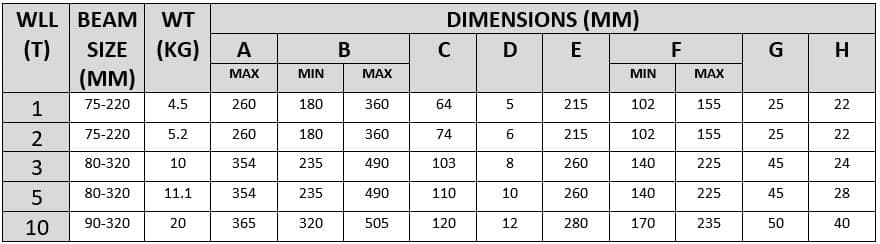

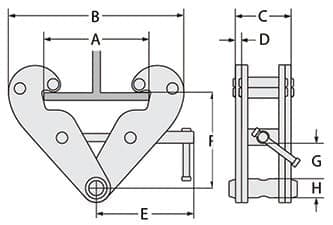

WLL (T) Adj Beam Size (mm) Weight (kg) A  (mm) B min (mm) B max (mm) C (mm) D (mm) E (mm) F min (mm) F max (mm) G H
1 75-220 4.5 260 180 360 64 5 215 102 155 25 22
2 75-220 5.2 260 180 360 74 6 215 102 155 25 22
3 80-320 10 354 490 490 103 8 260 140 225 45 24
5 80-320 11.1 354 490 490 110 10 260 140 225 45 28
10 90-320 20 365 505 505 120 12 280 170 235 50 40



Girder Clamp

Additional information

Weight 4.5 kg
WLL (t)

, , , ,
