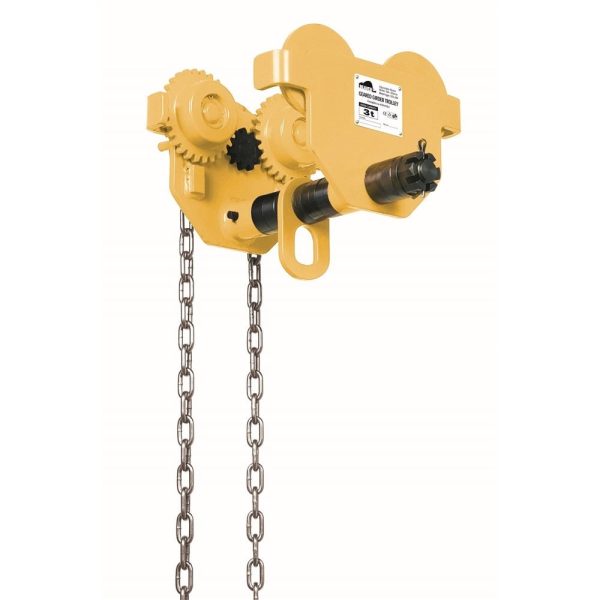

Girder Geared Trolley

$245.00$900.00 ex. GST

– Standard hand chain is 3 metres however longer chain lengths are available.
– High quality sealed ball bearings.
– Identification tag with serial number.
– Proof tested to 2 x WLL with certificate.
– Fitted with anti-drop plates for safety.
– Low headroom by design.
– Complies to AS1418.2.

Clear
SKU: GTG Category:

Description

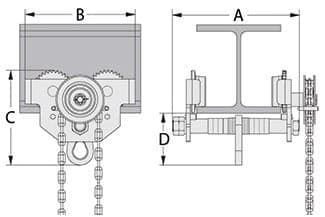

WLL (T) Beam Size (mm) Pulling Force (N) Weight (kg) A  (mm) B  (mm) C (mm) H (mm)
1 64-203 50 14 287 236 211 115
1.5-2 76-210 90 16 305 273 236 130
3 100-305 95 24 420 320 295 164
5 100-305 140 36 426 366 334 177
10 125-305 240 90 450 389 460 237



Girder Geared Trolley

Additional information

Weight 14 kg
WLL (t)

, , , ,
