G80 (T) Alloy Chain Sling

Category:

Description

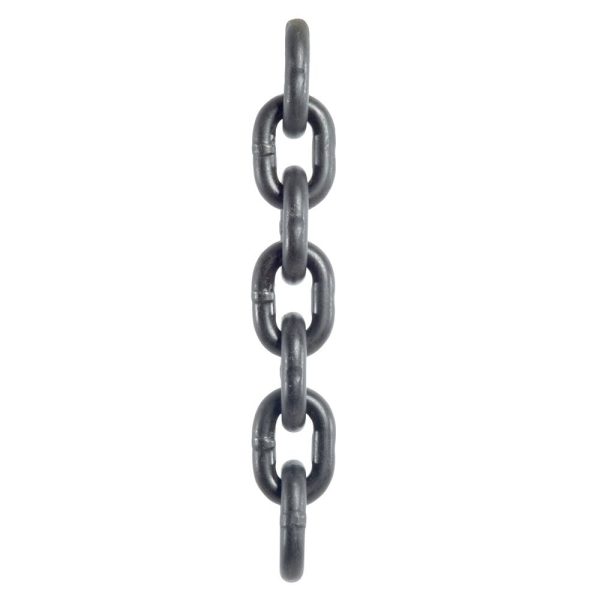

Austlift Grade 80 (T) Chain is designed for Chain Slings for industrial lifting applications.  It is made from alloy steel, hardened and tempered.  It has a high resistance to impact and meets critical requirements of AS2321 “Short link Chain for lifting purposes”.

  • Made in Kettenfabrik Chain manufacture in Germany with Admission (H34)
  • Sizes available from 6mm to 32mm.
  • Marked with Chain grade with traceability mark.
  • Made from G80 alloy steel with safety factor of 4 to 1
  • Test certificates available upon request.
  • Conforms to AS2321.

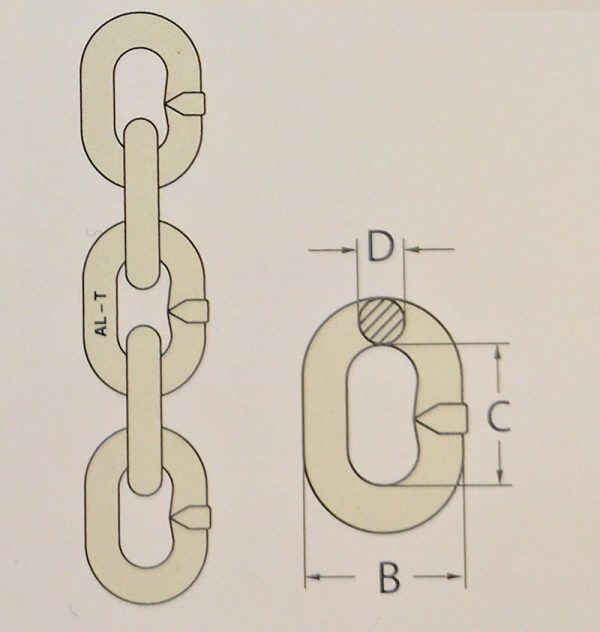

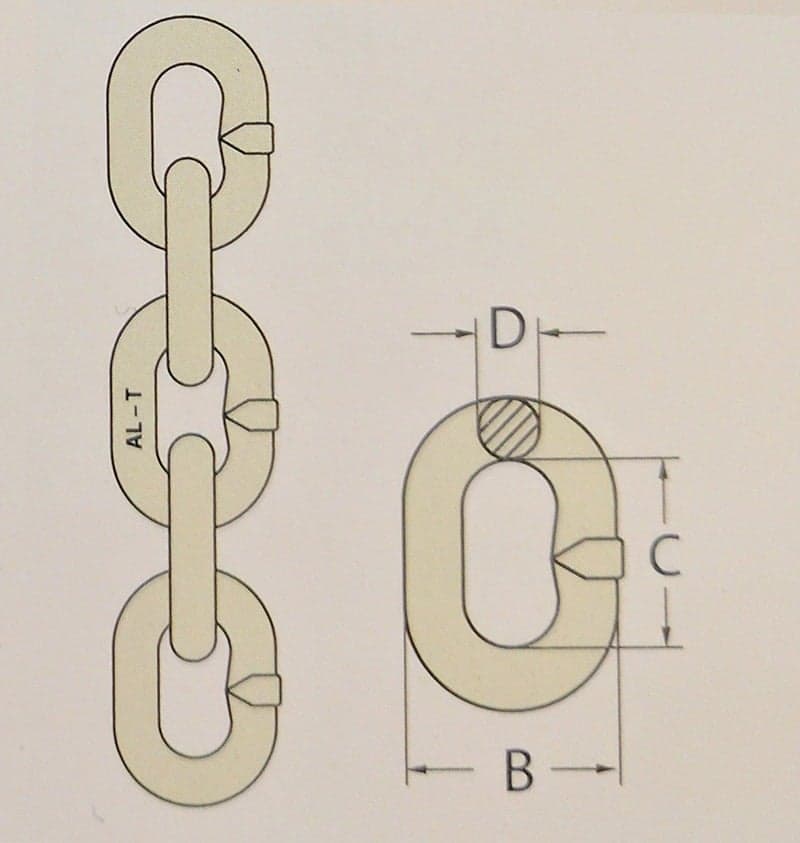

  SIZE WLL    DIMENSIONS (mm)  WEIGHT
 full drum cut length mm tonne B C D kg per m
 101506 101406 6.3 1.12 21 18 6 0.84
101507 101407 7.1 1.5 24 21 7 1.14
101508 101408 8 2 28 24 8 1.41
101510 101410 10 3.15 35 30 10 2.21
101513 101413 13 5.3 46 39 13 3.76
101516 101416 16 8 57 48 16 5.64
101520 101420 20 12.5 70 60 20 7.78
101522 101422 22 15 78 66 22 10.64
101526 101426 26 21.2 91 78 26 14.8
101532 101432 32 31.5 115 96 32 21.6
