Description

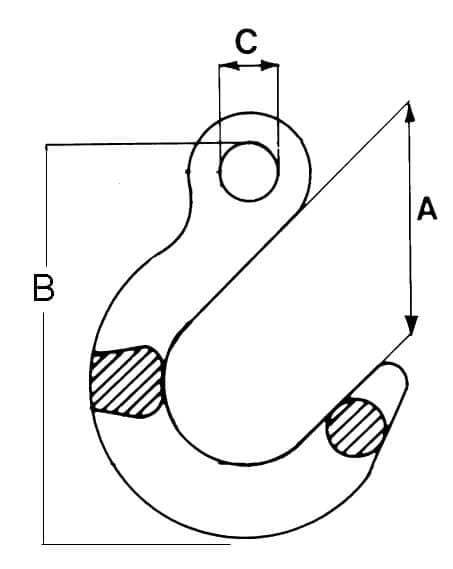

Size | WLL (4:1) Ton | C mm | A mm | B mm | Weight kg |
6mm | 1.1 | 18 | 63.5 | 163 | 2.4 |
10mm | 3.2 | 22 | 76 | 200 | 4.5 |
13mm | 5.3 | 27 | 89 | 238 | 7.1 |
16mm | 8 | 32 | 102 | 278 | 12.2 |

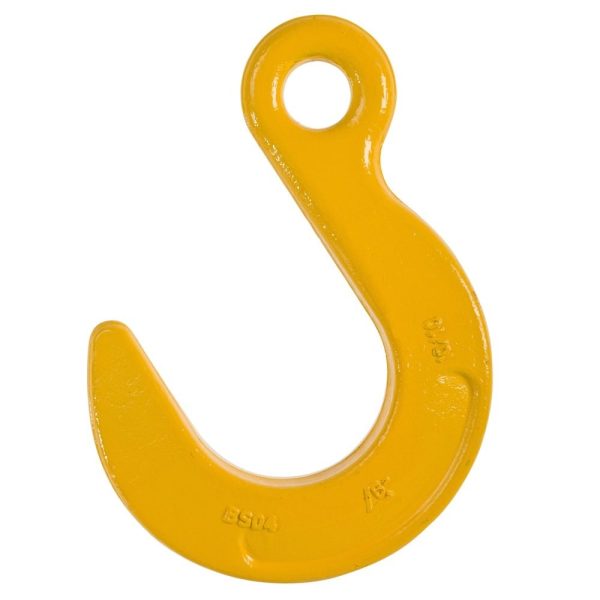

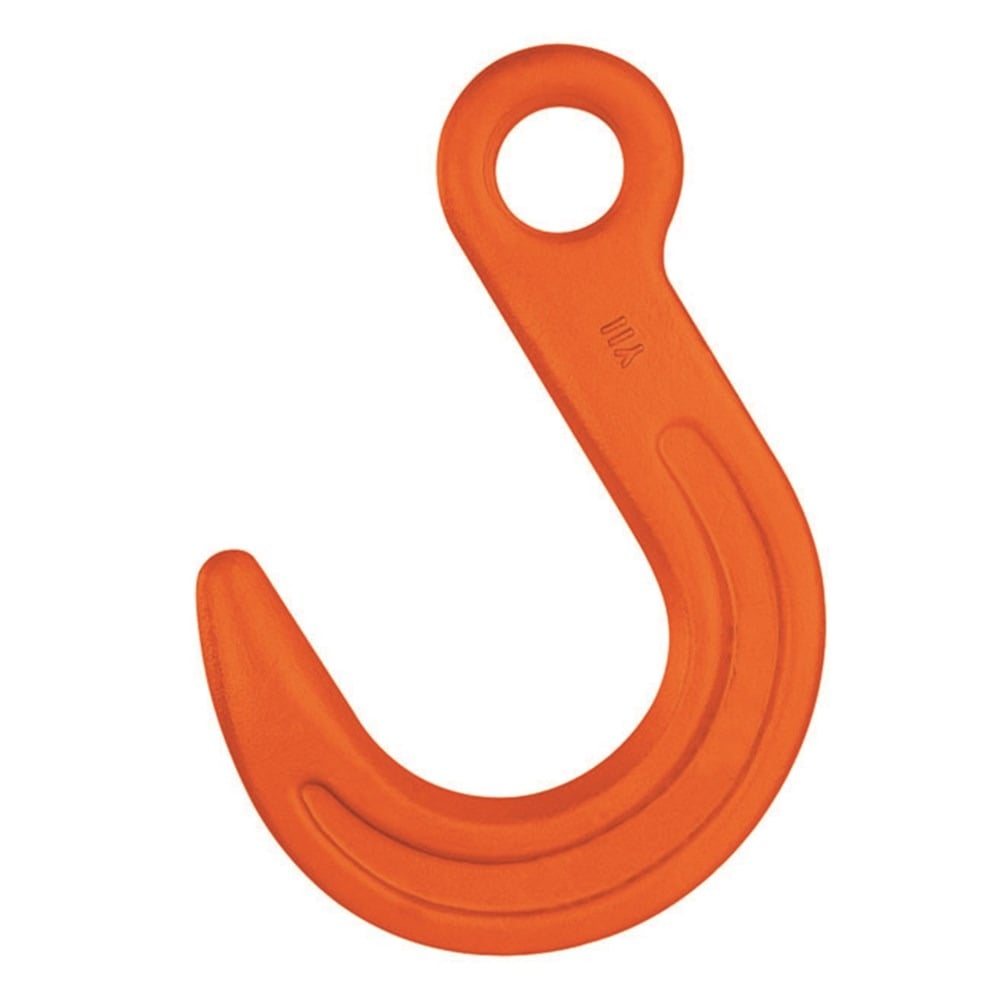

Foundry Hooks – Eye
$49.00 – $220.00 ex. GST
Foundry hooks are a special purpose hook with large mouth opening. Suitable for lifting pipes and foundry applications.

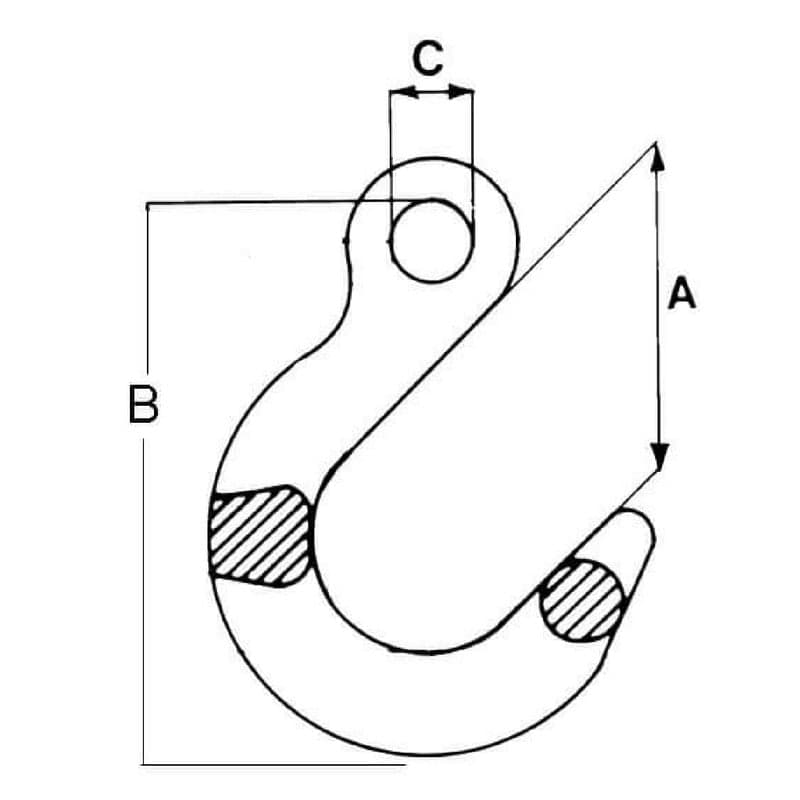

Size | WLL (4:1) Ton | C mm | A mm | B mm | Weight kg |
6mm | 1.1 | 18 | 63.5 | 163 | 2.4 |
10mm | 3.2 | 22 | 76 | 200 | 4.5 |
13mm | 5.3 | 27 | 89 | 238 | 7.1 |
16mm | 8 | 32 | 102 | 278 | 12.2 |
Weight | 2.4 kg |
---|---|
Grade | 100, 80 |
