Eye Nuts

$3.60$308.60 ex. GST

*CONTACT OUR OFFICE FOR PRICING ON M42 & M48*

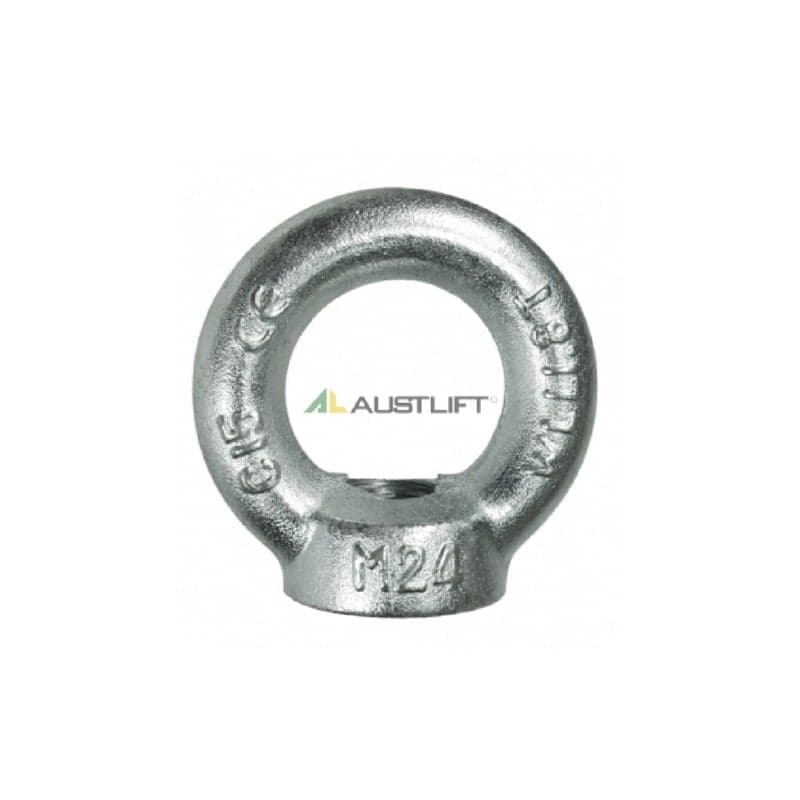

– Made from C15 carbon steel with zinc plated finish, manufactured with a standard larger eye. Only available in metric thread sizes.
– Conforms to DIN580 and DIN 582 marked with working load limit in tonne, nominal size in millimeter, quality grade, batch numbered and supplier identification.
– Proof tested to 2 x Working load limit and
– Minimum breaking force of 6 x Work load limit.

Clear
SKU: EN Category:

Description

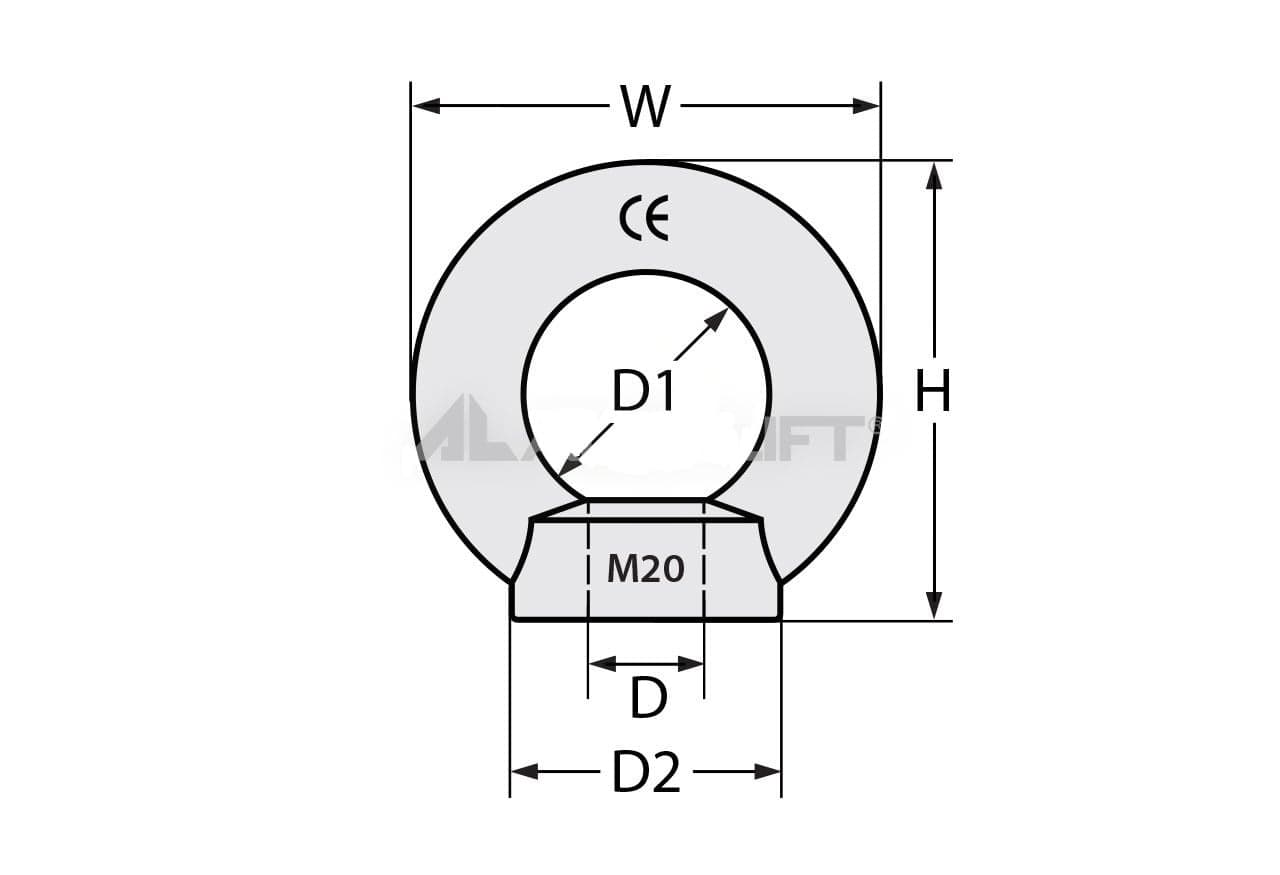

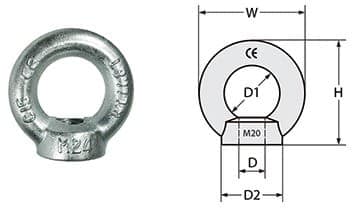

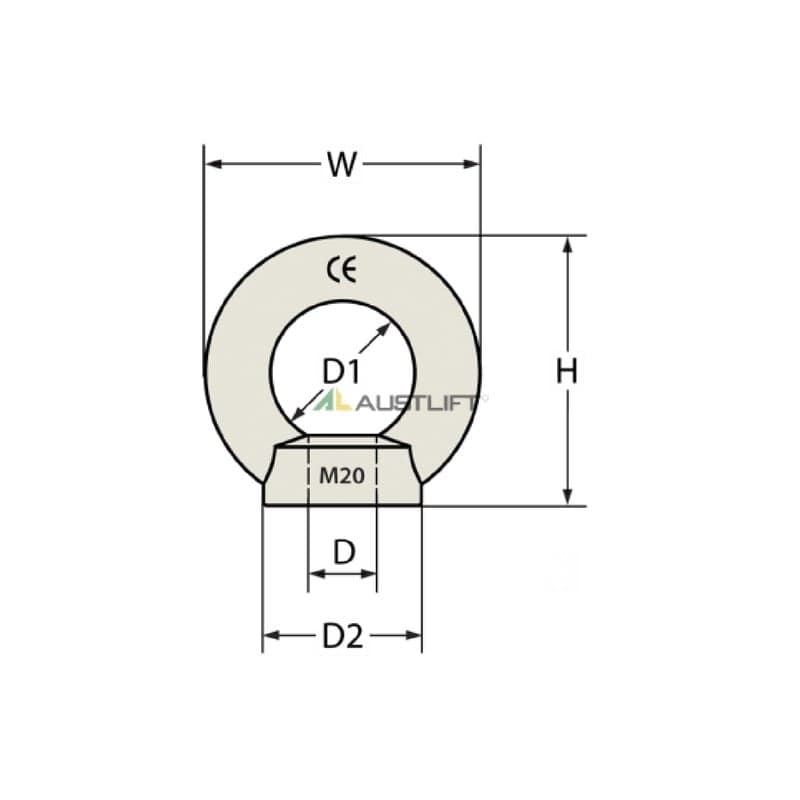

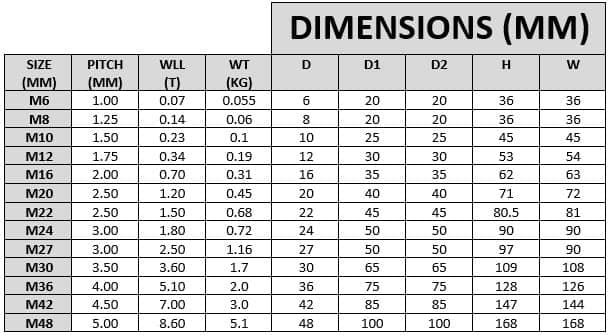

Size (mm) PITCH (mm) WLL (T) Weight (kg/pc) D (mm) D1 (mm) D2 (mm) H (mm) W (mm)
M6 1 0.07 0.055 6 17 20 36 28
M8 1.25 0.14 0.06 8 20 20 36 36
M10 1.5 0.23 0.1 10 25 25 45 45
M12 1.75 0.34 0.19 12 30 30 53 54
M16 2 0.7 0.31 16 35 35 62 63
M20 2.5 1.2 0.45 20 40 40 71 72
M22 2.5 1.5 0.68 22 45 45 50.5 81
M24 3 1.8 0.72 24 50 50 90 90
M27 3 2.5 1.16 27 50 50 97 90
M30 3.5 3.6 1.6 30 65 65 109 108
M36 4 5.1 2.8 36 75 75 128 126
M42 4.5 700 4.2 42 85 85 147 144
M48 5 8.6 6.5 48 100 100 168 168



Eye Nuts

Additional information

Weight 0.055 kg
Size

, , , , , , , , , , , , , ,

Manufacturer

,
