Eye Bolts

$3.60 – $223.90 ex. GST

*CONTACT OUR OFFICE FOR PRICING ON M42, M48 & M56*

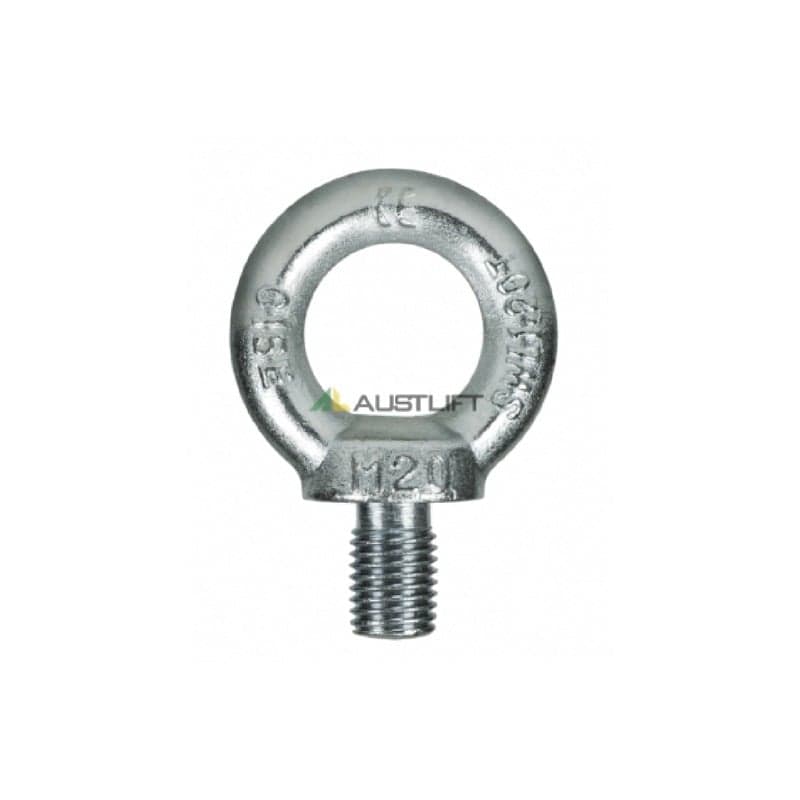

– Made from C15 carbon steel with zinc plated finish, manufactured with a standard larger eye. Only available in metric thread sizes.
– Conforms to DIN580 marked with working load limit tonne, nominal size in millimeter, quality grade, batch numbered and supplier identification.
– Proof tested to 2 x Working load limit and Minimum breaking force of 6 x Work load limit.

SKU: EB Category: Eye Bolt

Description

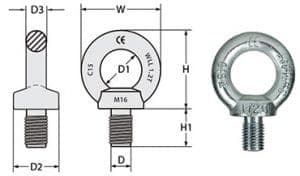

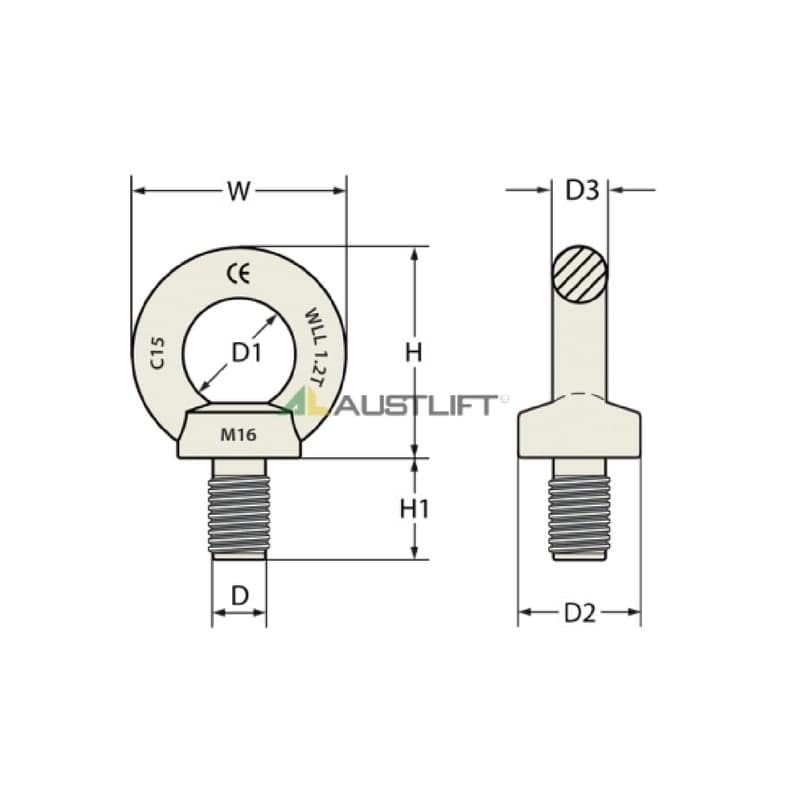

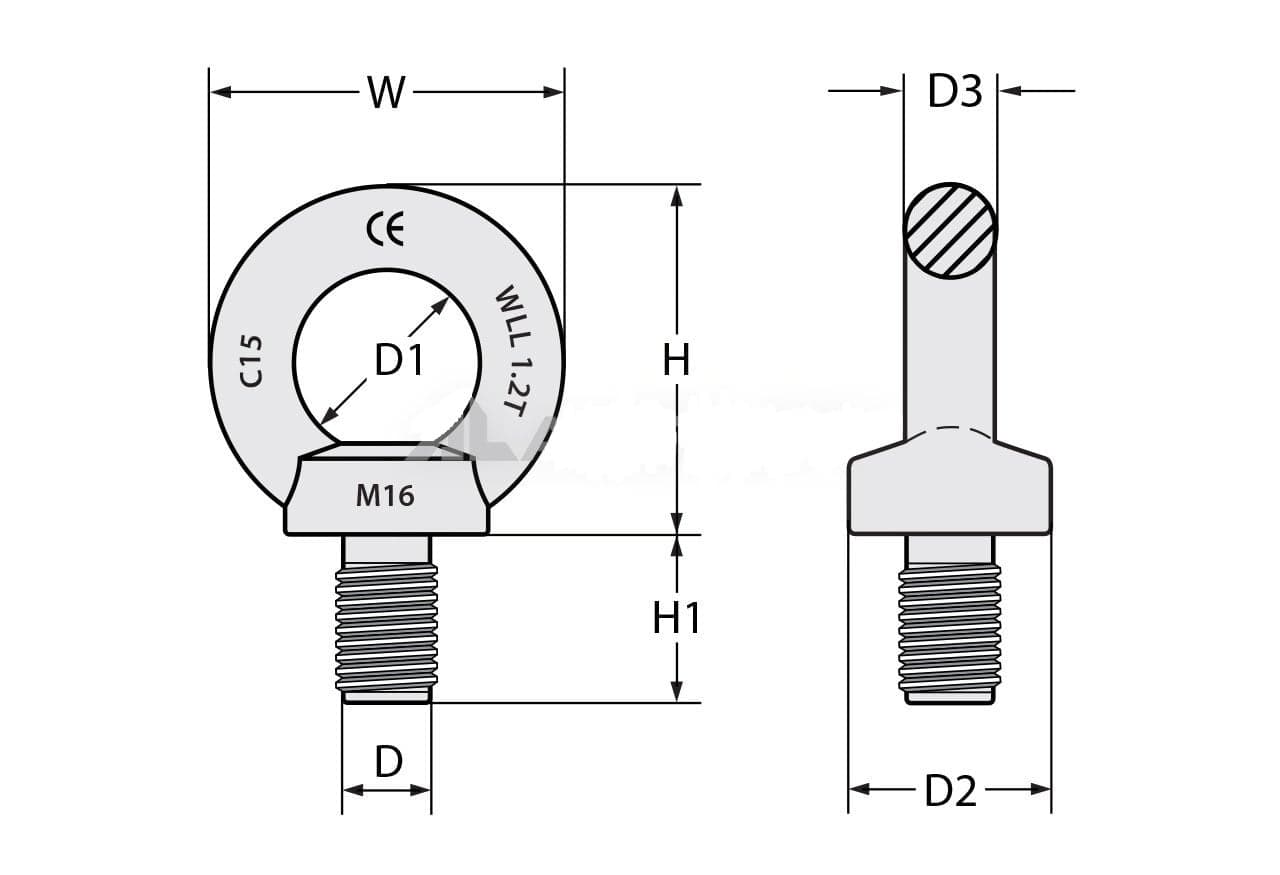

Size (mm)	PITCH (mm)	WLL (T)	Weight (kg/pc)	D (mm)	D1 (mm)	D2 (mm)	D3 (mm)	H (mm)	H1 (mm)	W (mm)
M6	1	0.07	0.055	6	14	19	6.5	27.5	12	27
M8	1.25	0.14	0.06	8	20	20	8	36	13	36
M10	1.5	0.23	0.1	10	25	25	10	45	17	45
M12	1.75	0.34	0.19	12	30	30	12	53	20	54
M16	2	0.7	0.31	16	35	35	14	62	27	63
M20	2.5	1.2	0.45	20	40	40	16	71	30	72
M22	2.5	1.5	0.68	22	45	45	18	80.5	35	81
M24	3	1.8	0.72	24	50	50	20	90	36	90
M27	3	2.5	1.16	27	50	50	20	97	36	90
M30	3.5	3.6	1.6	30	65	65	24	109	45	108
M36	4	5.1	2.8	36	75	75	28	128	54	126
M42	4.5	7	4.2	42	85	85	32	147	63	144
M48	5	8.6	6.5	48	100	100	30	168	68	168
M56	5.5	11.5	8.9	56	100	110	42	187	78	184

Eye Bolts

Additional information

Weight	0.055 kg
Size	M10, M12, M16, M20, M22, M24, M27, M30, M33, M36, M42, M48, M56, M6
Manufacturer	AUSTLIFT, TOWNLEY
