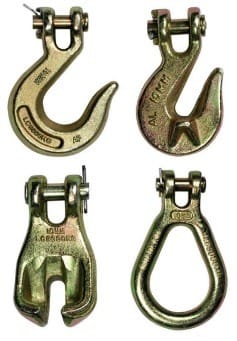

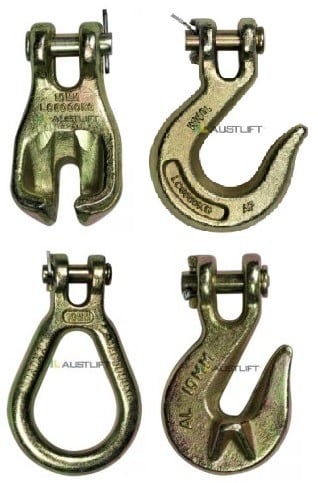

Lashing Chain Fittings G70

$5.00$22.00 ex. GST

* DIMENSIONS BELOW *

Clear
SKU: 201108 Category:

Description

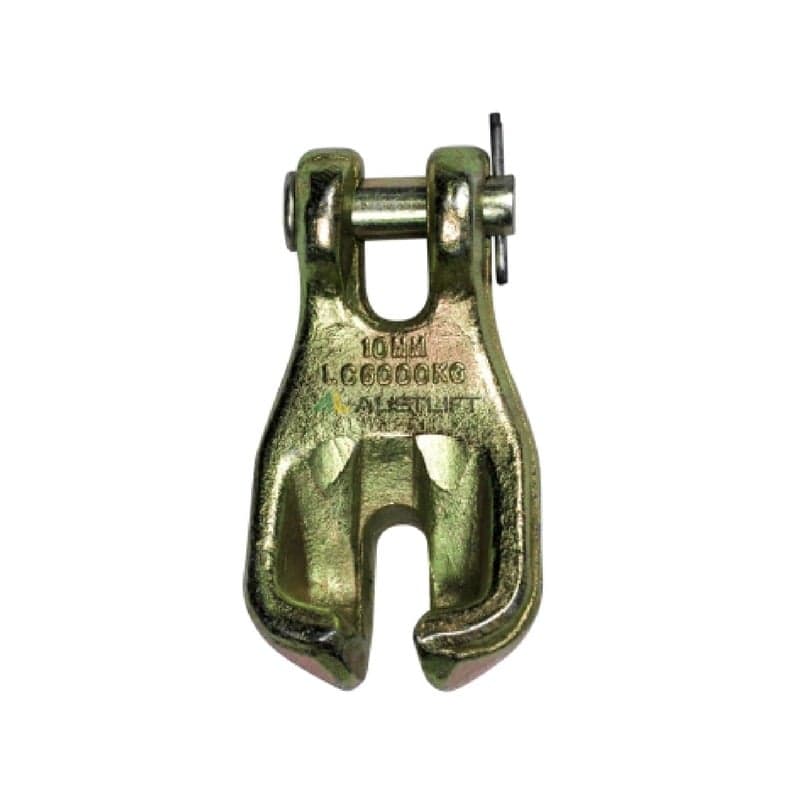

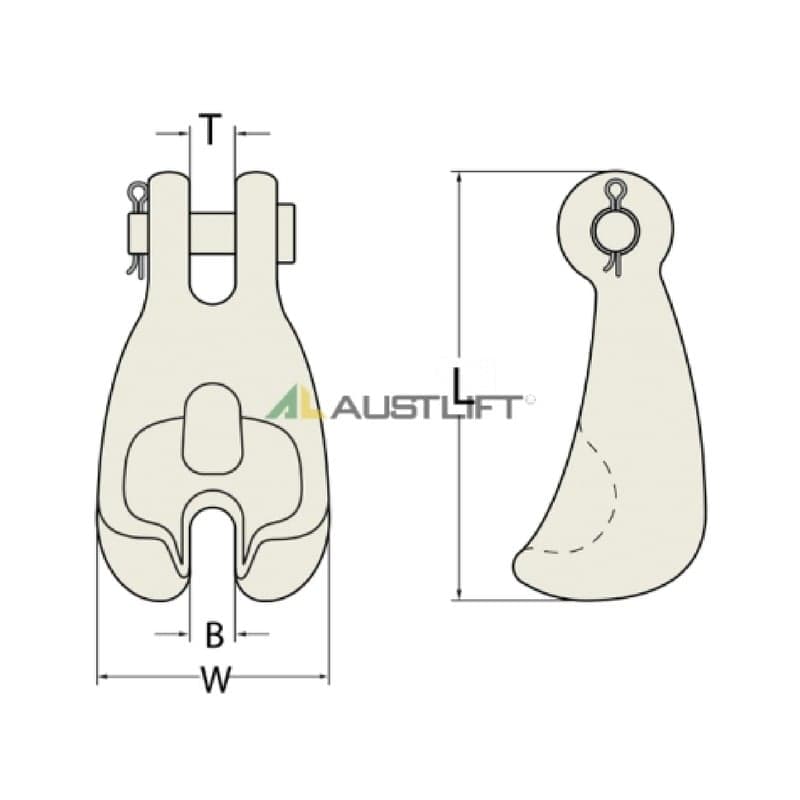

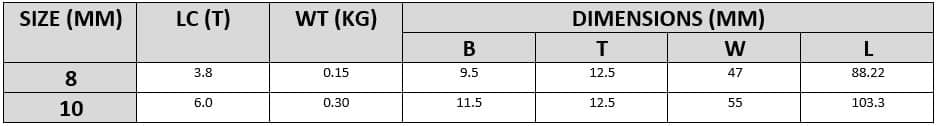

CLAW HOOK DIMENSIONS

Size (mm) LC (kg) Weight (kg) B (mm) T (mm) W (mm) L (mm)
8 3800 .15 9.5 12.5 47 88.22
10 6000 0.3 11.5 12.5 55 103.3

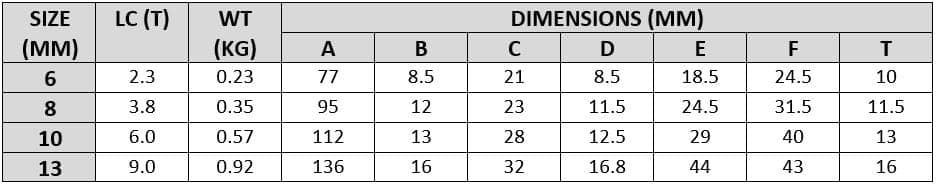

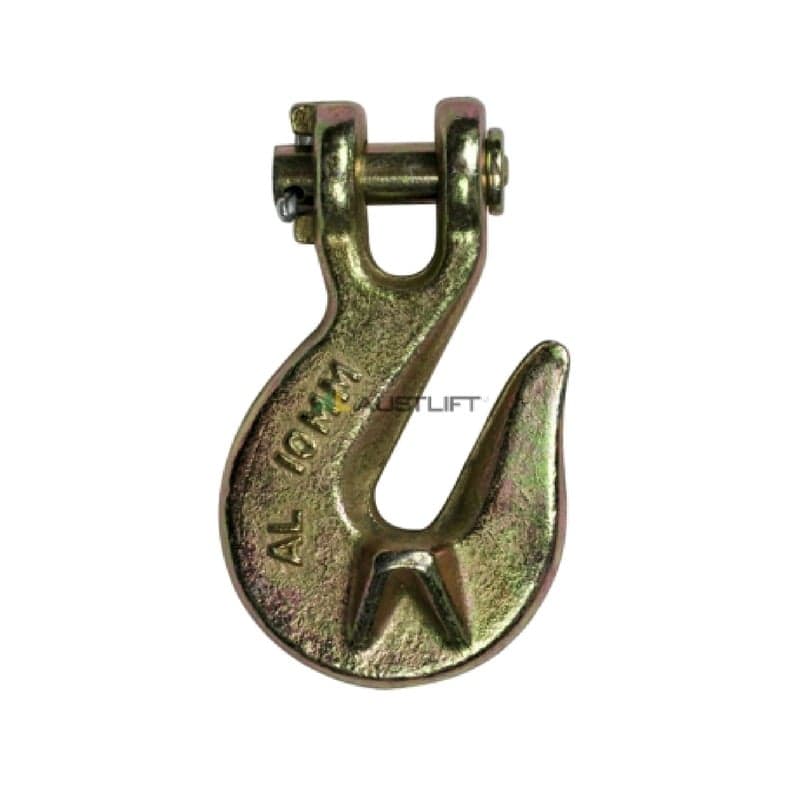

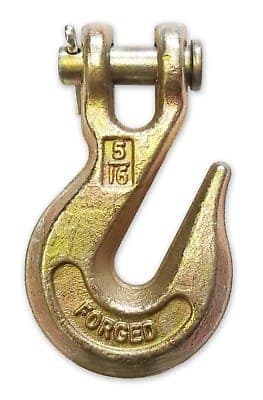

GRAB HOOK DIMENSIONS

Size (mm) LC (kg) Weight (kg) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) T (mm)
6 2300 .23 77 8.5 21 8.5 18.5 24.5 10
8 3800 0.35 95 12 23 11.5 24.5 31.5 11.5
10 6000 0.57 112 13 28 12.5 29 40 13
12 9000 0.92 136 16 32 16.8 44 43 16

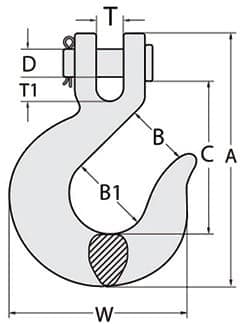

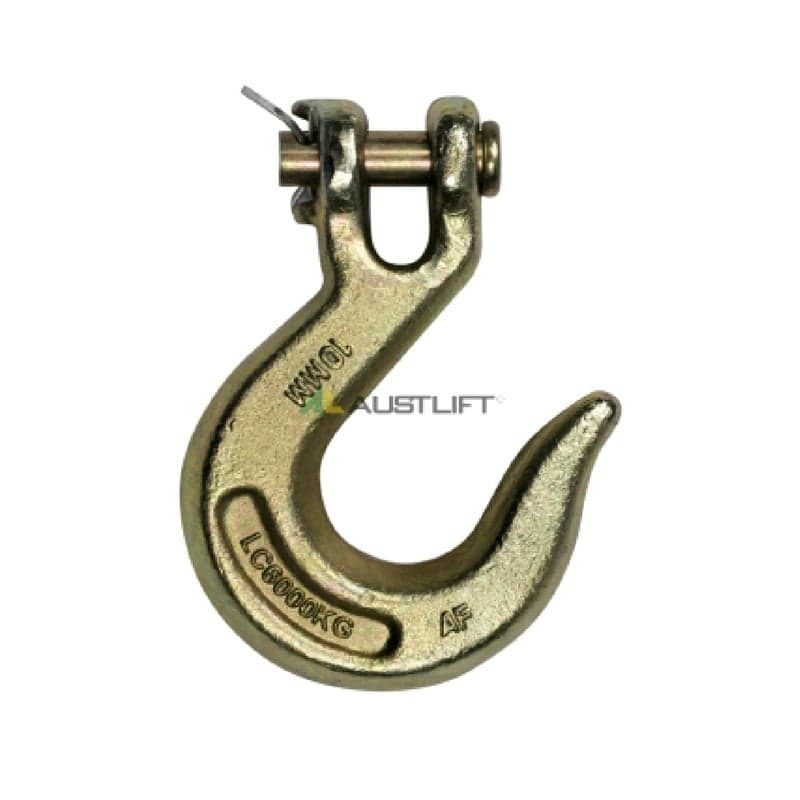

SLIP HOOK DIMENSIONS

Size (mm) Type Weight (kg) A (mm) B (mm) B1 (mm) C (mm) D (mm) T (mm) T1 (mm) W (mm)
6 Clevis .22 102 24 30 66 7.8 11 11.4 70
8 Clevis 0.33 114 27 32 74 9.9 13 13.4 75
8 Eye 0.33 114 27 32 74 9.9 13 13.4 75
10 Clevis 0.5 132 33 38 85 12 15 15.5 88
13 Clevis 1.23 166 43 49 103 16 19 19.6 123

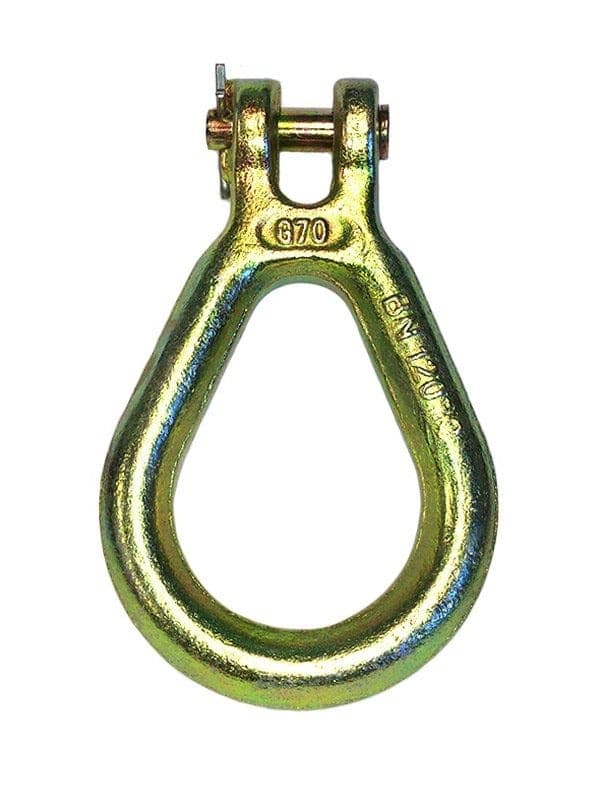

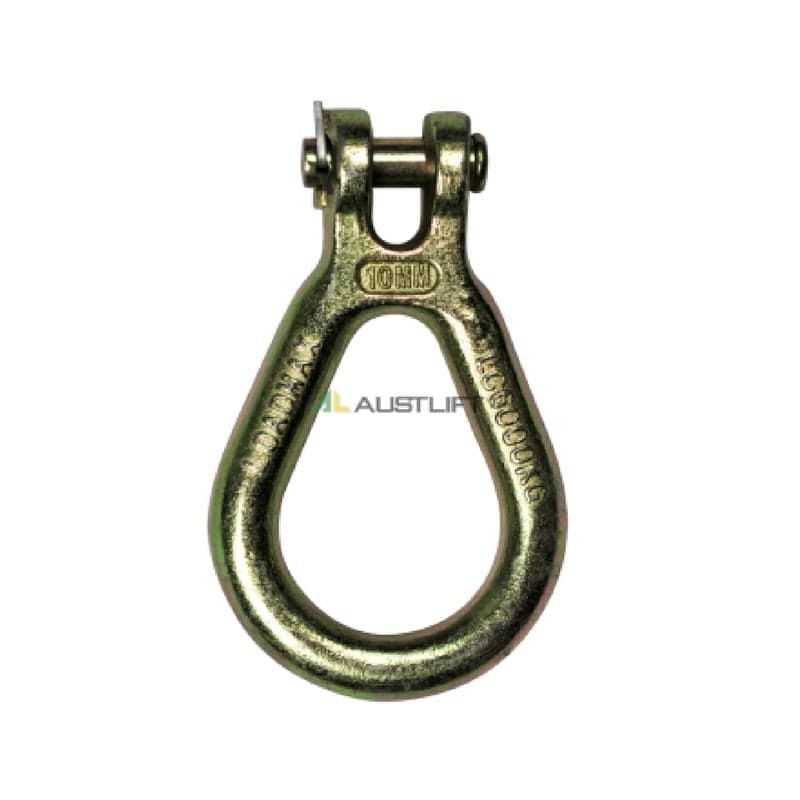

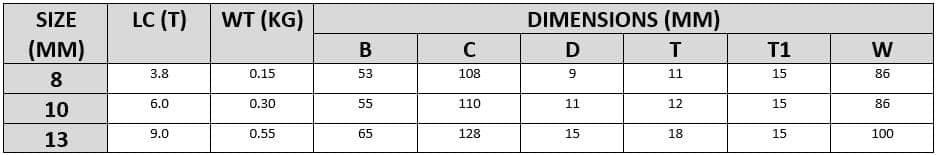

LUG LINK DIMENSIONS

Size (mm) LC (kg) Weight (kg) B (mm) C (mm) D (mm) T (mm) T1 (mm) W (mm)
8 3800 .15 53 108 9 11 15 86
10 6000 0.3 55 110 11 12 15 86
13 9000 0.55 65 128 15 18 15 100



Lashing Chain Fittings G70

Additional information

Weight 0.15 kg
Size

, , ,

Option

, , , ,
